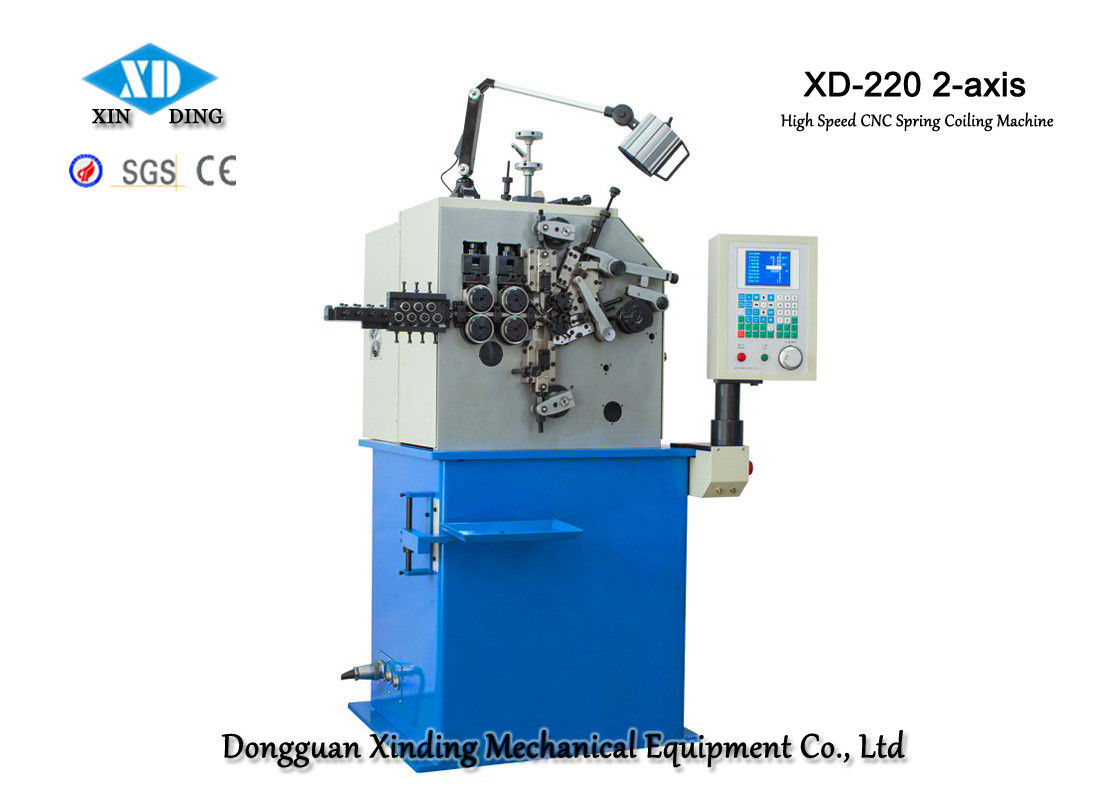

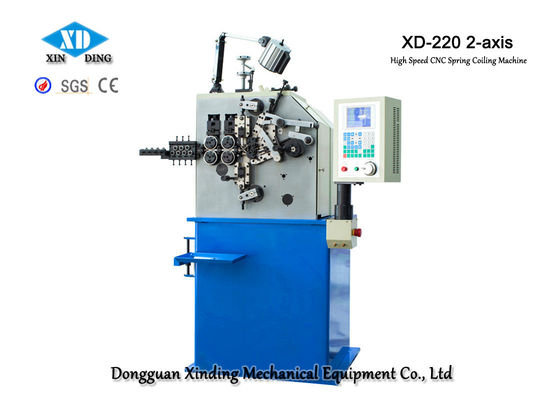

XD-220 Making Various Precision Compression springs Within Wire Dia 0.5 - 2.0mm

XD-220 Making Various Precision Compression springs Within Wire Dia 0.5 - 2.0mm

XD-220 Making Various Precision Compression springs Within Wire Dia 0.5 - 2.0mm
XD-220 Making Various Precision Compression springs Within Wire Dia 0.5 - 2.0mm
Product Details:
Place of Origin: China
Brand Name: Xinding
Certification: CE / ISO9001
Model Number: XD-220
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Wire Dia: Φ0.5-2.0mm Controller: Taiwan Titu
Axis Count: 2 Axis Motor Brand: Japanese Sanyo Denki
Max. OD: Φ50mm Feed Speed: 0~155m/min
Weight: 850kg Making Rate: 0~300pcs/min
Power AC: 3P~380V 50hz Dimension: 1100*850*1600mm
High Light:

spring coiler machine


automatic spring coiling machine


Product Introduce

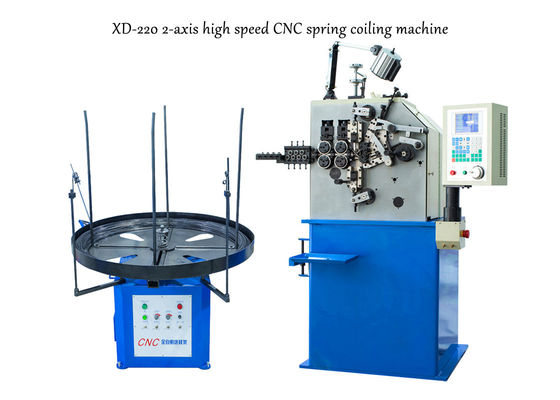

  XD-220 2-axis CNC Spring Coiling Machine is applied on springs with wire diameter range 0.5mm to 2.0mm, which is aimed to manufacture various precision compression springs, such as coil springs, tower or tip springs, middle convex or concave springs, equal or unequal pitch springs, reducing springs, etc. The standard machine has equiped with two servo motor drive, including one wire feeding servo motor and one cam moving servo motor. Further it is optional to add a third axis for pitch controlling. At the same time, in order to control the accuracy of the spring and its pass rate, you can also choose a length gauge separately.

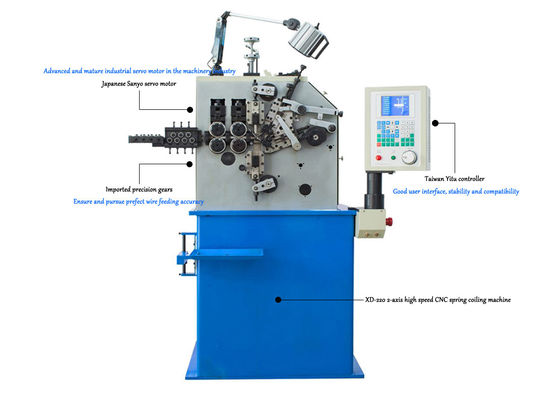

Machine Feature

◇ It adopts Taiwai Yitu controller and Japanese Sanyo Denki servo motor, ensuring a stable operating environment.
◇ It adopts two groups wire feeding wheels and the wire feeding system is installed horizontally back of the machine.
◇ Standardly the machine is equiped with two axis, also a third pitch axis can be extended.
◇ The program data can be set and changed easily, axis location, feeding date, production speed and production output are displayed on the screen.
◇ The controller provides user interface with Chinese & English, operation and learning easily.

In order to control the accuracy of the spring and its pass rate, a length gauge is optional accessory for you choose.


Spring Sample

Spring Sample's Display


Technical Parameter





      Wire Diameter



      Axis Count

      2 axis


      Max. Outside Diameter



      Max. Feeding Length



      Manufacture Speed



      Feed Speed



      Feeding Wheel Count

      2 pairs


      Wire Feed Servo Motor



      Cam Servo Motor



      Feed Setting Value

      Y: 0.01~9999.99mm


      Cam Setting Value

      X: 0.1-359.9°

13       Computer Display       Chinese & English
14       Storage Capacity       1000 programs

      Dimensions (L*W*H)



      Package Dimensions



      Machine Weight



      Power AC

      3P~380V 50/60hz


Machine Package

XD-220 2-axis CNC Spring Coiling Machine's Package For Delivery
