| Place of Origin: | China |
| Brand Name: | Xinding |
| Certification: | CE / ISO9001 |
| Model Number: | XD-820 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days after receive payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets per month |
| Model: | XD-820 | Axis Count: | 8 Axis |
|---|---|---|---|
| Max. OD: | Φ45mm | Wire Diamter: | Φ0.5~2.0mm |
| Weight: | 1100kg | Production Rate: | 0~300pcs/min |
| Power AC: | 3p~380V 50hz | Dimension(L*W*H): | 1100x900x1650mm |
● Product Introduce

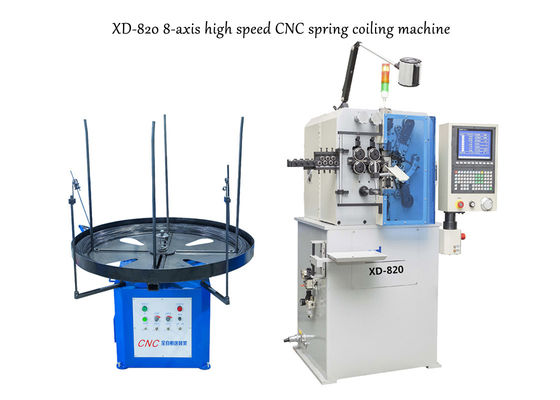

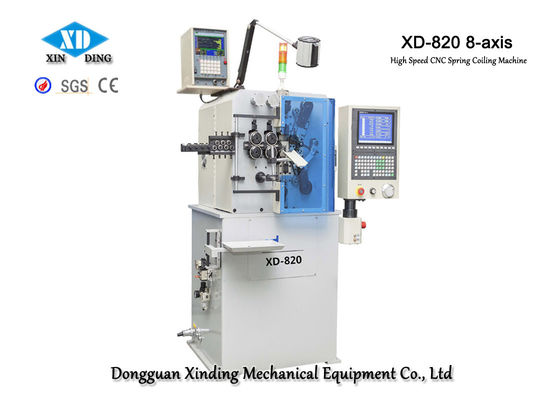

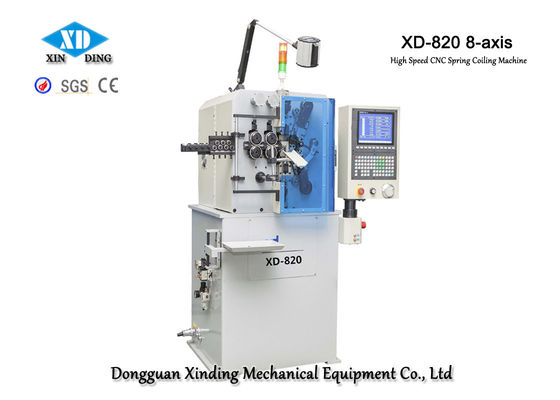

XD-820 8-axis High Speed Spring Coiling Machine is designed and producing wire diameter from 0.5mm to 2.0mm, which has a strong capability of manufacturing springs and can make all kinds of precision coil springs, some torsional springs and so on. The machine has totally equipped with eight servo motors, they are, one servo motor for wire feeding Y-axis, two servo motors for cutting A-axis and B-axis, two servo motors for controlling OD X-axis and C-axis, two servo motors for arbor moving U-axis and V-aixs and one servo motor for controlling pitch Z-axis. Compared with traditional spring coiling machine, XD-820 8-aixs CNC spring coiler is good combination of speed and precision. The more important is, it not only improves the production speed and precision, but also reduces the operation difficulty and saves the manual operation time.

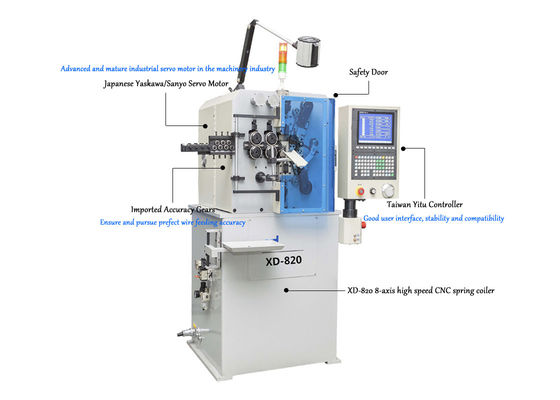

● Machine Feature
◇ Integrated design of cutters which are directly controlled by computer.
◇ Fieldbus controller, reaction speed and synchronization largely increased. No need HOME execution in every start.
◇ Quick preparation of left and right hand springs.
◇ Arbor moving back and forth, up and down by CNC.
◇ Safety door, indicating light, external spring length gauge equipment with the machine.
◇ The optional device: the spring length gauge/sensor.
● Sample Display
● Technical Parameter
| 1 | Model | XD-820 |
| 2 | Axis Count | 8 axis |
| 3 | Wire Diameter | Φ0.5~2.0mm |
| 4 | Max. Outside Diameter | Φ50mm |
| 5 | Production Speed | 0~400pcs/min |
| 6 | Feeding Roller Count | 2 pairs |
| 7 | Wire Feed Servo Motor | 2.7kw |
| 8 | Cutter Servo Motor | 1.0kw*2 |
| 9 | OD Controlled Axis Servo Motor | 1.0kw*2 |
| 10 | Pitch Servo Motor | 1.0kw |
| 11 | Arbor Back-and-Forth Servo Motor | 0.4kw |
| 12 | Arbor Up-and-Down Servo Motor | 0.4kw |
| 13 | Computer Display | Chinese & English |
| 14 | Feeding Setting Value | Y: 0.01-99999.99mm |
| 15 | Storage Capacity | 1000 programs |
| 16 | Machine Dimension (L*W*H) | 1400*1100*1700mm |
| 17 | Machine Weight | 1000kg |
| 18 | Power AC | 3P-380V 50/60hz |
● Machine Package
How To Place Order:
If you are interested in our spring machines, kindly provide your products details to us for reference. For example, the drawing of products or images. Only when we understand your needs can we recommend the suitable machines and quotations.
◇ Show us the drawing or picture of your samples.
◇ Work out the competitive price for you.
◇ Make a proforma invoice.
◇ Arrange the mass production after receiving your 30% payment.
◇ Ship the goods about 10 days after receipt the whole payment.
◇ Following your goods until you receive them and satisfy with the quality.
Customer requires, XinDing aims. We will always be at your service.
Dongguan Xinding Mechanical Equipment Co., Ltd specialized in manufacturing and supplying CNC spring making machines for over 20 years, we founded on the belife of "Professional, Innovation, Quality and Service". With the know-how and wisdom, we introduce series of efficient CNC spring making machine and we have been serving thousands of spring manufacturing enterprises. Undoubtedly, we have earned the appreciation from leading domestic and international spring makers.
It's easy to find suppliers in China, but it is not easy to find a professional supplier such as Xinding. If the above products are just what you have been looking for, or you are interested in our other products, please do not hesitate to contact us. We will be happy to provide you with quality service, and your satisfaction is our constant pursuit.
