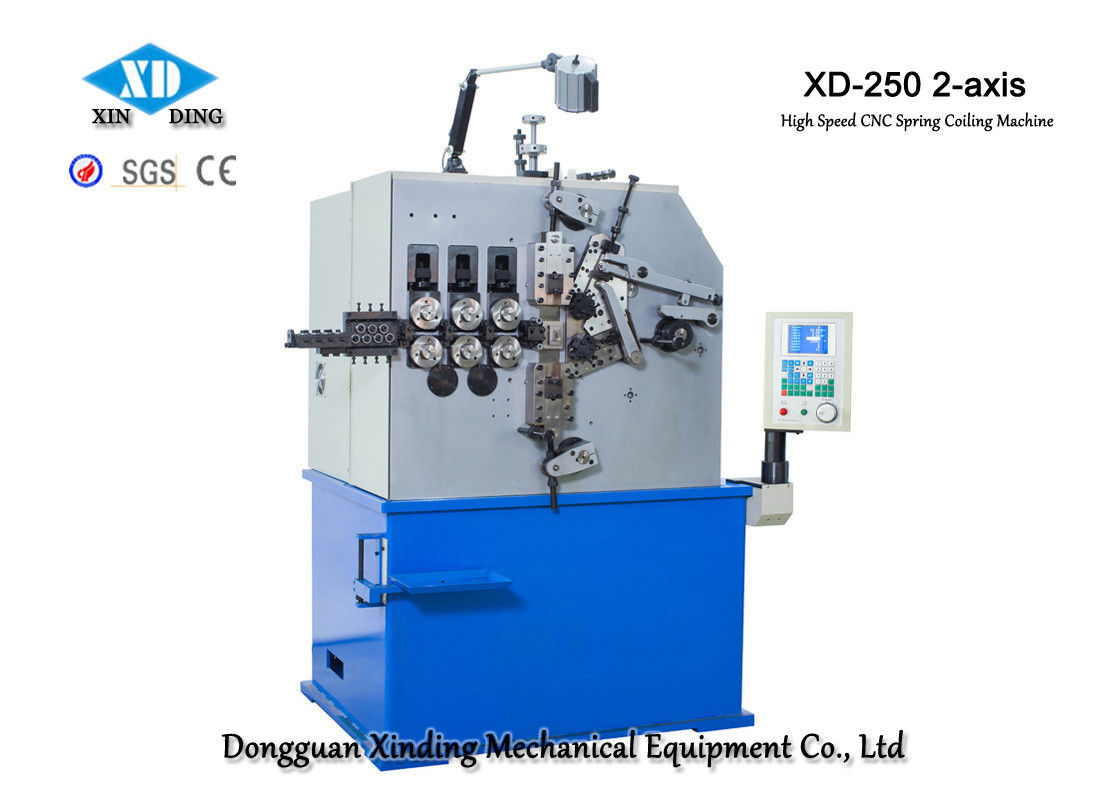

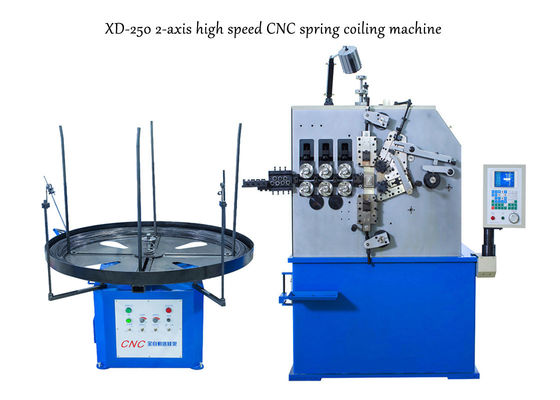

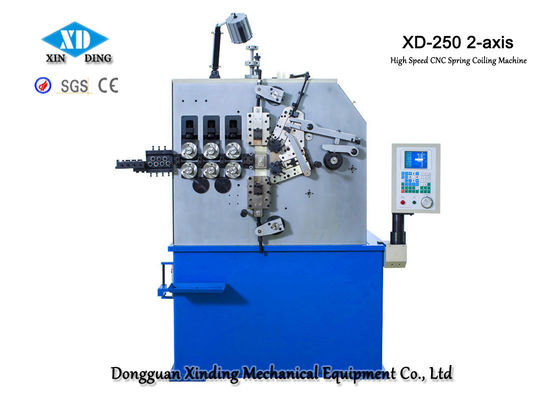

XD-250 2-Axis Spring Coiling Machine Producing 2.0mm To 5.0mm Compression Springs

XD-250 2-Axis Spring Coiling Machine Producing 2.0mm To 5.0mm Compression Springs

  • XD-250 2-Axis Spring Coiling Machine Producing 2.0mm To 5.0mm Compression Springs
  • XD-250 2-Axis Spring Coiling Machine Producing 2.0mm To 5.0mm Compression Springs
  • XD-250 2-Axis Spring Coiling Machine Producing 2.0mm To 5.0mm Compression Springs
  • XD-250 2-Axis Spring Coiling Machine Producing 2.0mm To 5.0mm Compression Springs
XD-250 2-Axis Spring Coiling Machine Producing 2.0mm To 5.0mm Compression Springs
Product Details:
Place of Origin: China
Brand Name: Xinding
Certification: CE / ISO9001
Model Number: XD-250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Wire Dia: Φ2.0-5.0mm Controller: Taiwan Yitu
Axis Count: 2 Axis Servo Brand: Sanyo Denki
Weight: 2000kg Computer Display: English & Chinese
Package: Wooden Case Machine Color: Grey And Green
Power: 3P~380V 50hz Dimension(L*W*H): 2000*1300*2000mm
High Light:

spring coiler


spring coiling machinery


Product Introduce

  XD-250 2-axis CNC Spring Coiling Machine processing springs range of wire diameter is from 2.0mm to 5.0mm, which is mainly suitable for making various precision compression springs within the range of wire dia, such as coil springs, tower or tip springs, middle convex or concave springs, equal or unequal pitch springs, reducing springs, etc. The standard machine has equiped with two servo motor to drive, that is, one servo motor for wire feeding and one servo motor for cam moving. Further the third axis is controlled the pitch of springs and is optional device needs to order separately.


Machine Feature

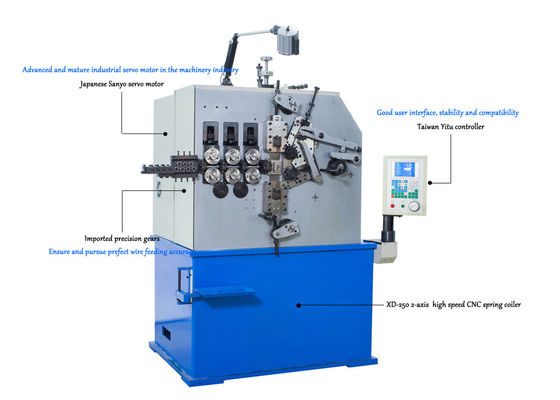

It adopts Taiwai Yitu computer controller and Japanese Sanyo Denki servo motor, ensuring a stable operating environment.

It adopts three groups wire feeding wheels and the wire feeding system is installed horizontally back of the machine.

The standard machine has equiped two axis, the third axis can be extended to facilitate the pitch control of spring manufacturing.

The program data can be set and changed easily, axis location, feeding date, production speed and production output are display on the screen.

The spring outside diameter can be adjusted easily by means of setting the program and the outside diameter axis is working indepently.

Sample Display

Spring Sample's Display

Technical Parameter

1       Model       XD-250
2       Axis Count       2 axis
3       Wire Diameter       Φ2.0~5.0mm
4       Max. Outside Diameter       Φ80mm
5       Max. Producution Rate       0~100pcs/min
6       Max. Feeding Speed       60m/min
7       Feeding Length       Unlimited
8       Feeding Roller Pairs       3 pairs
9       Spring Index       4
10       Wire Feed Y-axis Servo Motor       11.0kw
11       Cam X-axis Servo Motor       7.0kw
12       Computer Display       Chinese & English
13       Feeding Setting Value       Y: 0.01-99999.99mm
14       Cam Setting Value       X: 0.1-359.9°
15       Storage Capacity       1000 programs
16       Dimensions(L*W*H)       2000*1300*2000mm
17       Weight       2000kg
18       Power AC       3P~380V  50/60hz

Machine Package

Machine's Packing For Delivery

Tips On Machine Maintenance

To maintain the cleanliness of feeding servo motor to prevent oil and gas, and dust fall into the servo motor or encoder, resulting in mechanical damage.
At least every six months for maintenance or in accordance with the number of machine production, and replace the line feed operation at the same time.
Implementation of machine maintenance jobs, follow these steps:
   Make sure the power is turned off.
   Wipe the parts with cotton cloth, wire feed wheel, sending Line Block, delivers the spindle and other metal surfaces, removal of the mechanical surface debris, oil, grease, dust, and coated with a of antirust thin oil to prevent mechanical corrosion.
   With the cotton swab to remove the old grease and oil stains on the wire feed drive gear.
The transmission tooth gear train gear contact face spreads the gear special-purpose oil lubrication.(Uses OMEGA73 or same level lubricating oil).

Attention: Please do not use the air spray gun to be clean, in order to avoid the detritus, the dust fall the slide rails sliding way or in the rotation structure gap.


Our Advantages

Our company has been focusing on the field of spring making machine for over 20 years and has rich technical experience. At the same time, we focus on technological innovation and personnel training, and have our own professional R & D, sales and service teams.
Company's the Founder Mr Bai has witnessed the Spring Industry development in China, and committed to improving user experience and continuously improving machine quality.
The company's philosophy is "Quality Priority, Customers First, Keeping Improving", not only just a slogan, but also put into practice.
Our company's products are great recogized and favored by thousands of spring makers all over the world. Our main market as following:
   Europe (UK, France, Germany, Italy, Sweden, Romania, Poland, Estonia, Russia, Ukraine, Bulgaria)
   Africa (South Africa, Egypt, Ethiopia, Nigeria, Tunisia)
   Asia (Korea, India, Vietnam, Philippines, Singapore, Indonesia, Malaysia, Iran, Thailand, Turkey)
   South America (Argentina, Brazil, Chile, Peru, Ecuador, Colombia)
   North America (America, Canada, Cuba, Mexico,Costa Rica)
We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.

Company Philosophy
  "You specify, we build", Xinding will always be with you.
  Dongguan Xinding Mechanical Equipment Co., Ltd is specialized in CNC spring making machine over 20 years, we founded on the belife of "Professional, Innovation, Qualilty and Service". With the know-how and wisdom, we introduce series of efficient CNC spring making machines and we have been serving thousands of spring manufacturing enterprises. Undoubtely, we have earned the appreciation from leading domestic and international spring makers.
  If the above products are just what you have been looking for, or you are interested in our other products, please do not hesitate to contact us. We will be happy to provide you with quality service, and your satisfaction is our constant pursuit.
