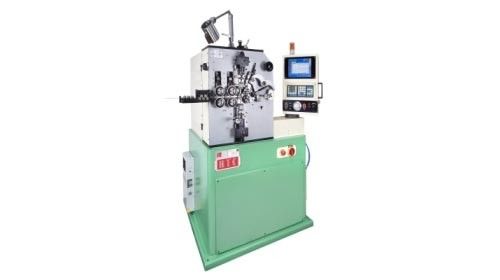

Stable CNC Spring Coiling Machine 4 Axes With USB Port , Max. Speed 70 RPM

Stable CNC Spring Coiling Machine 4 Axes With USB Port , Max. Speed 70 RPM

  • Stable CNC Spring Coiling Machine 4 Axes With USB Port , Max. Speed 70 RPM
Stable CNC Spring Coiling Machine 4 Axes With USB Port , Max. Speed 70 RPM
Product Details:
Place of Origin: China
Brand Name: XD
Certification: CE / ISO9001
Model Number: 650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: standard packaging
Delivery Time: 5-10 working days
Payment Terms: TT LC
Supply Ability: 70 Set/Sets per Month Spring Coiling Machine
Contact Now
Detailed Product Description
Product Name: CNC Spring Coiling Machine Type: Spring Coiling Machine
Max. Leg Length: 100mm Slide Stroke: 90mm
Wire Dia.: 3.0-5.0mm Dimension: 3000x1550x2050 Mm
Max. Speed: 60M/min Standard Axes: 4 Axes
High Light:

spring coiler


spring coiling machinery

Precision and Stable CNC Spring Coiling Machine High Quality CNC Spring Forming Machine (CNC-650RW)


1. Wire diameter(mm) 0.15~0.8
2. Max.Outside Diameter(mm) 18
3. 2 axis
4. CNC control system

FEATURES:  Spring Coiling Machine
Max. 6 axes
File index
On screen HELP menu
USB port
Servo control MS mode and CNC mode
TEACH edit
Priority control
Programmable pause timing/duration
Programmable jogging speed
Angle setting available for Cam, Quill and Servo Spinner
Turns setting available for Servo Spinner
Optional servo spinner, hook station, MPG, etc
Producing both springs and wire-forming products, commonly use in the industries of: Automobile,
wire forms, entertainment and fitness. It is easy to operate, suitable for making various high precision springs. The main parts of the machine are carefully made of high abrasion resistant material. The high efficiency performance is perfect. The stable-performance is high. With the excellent design of the machine and the patent technology, it can guarantee the quality of your products.

Specifications For The Spring Coiling Machine:  Spring Coiling Machine

Model: CNC-650RW  Spring Coiling Machine
Axes Standard 4
Max. 6
Material Wire dia. 3.0-5.0mm
Slide stroke   90mm
Max. Leg length   100mm
Max. OD   120mm
Cam axis Min. increment 1 (4000/cycle)
Max. speed 70 RPM
Motor rated output 7.5kw
Feed axis Min. increment 0.01
Max. feed /step 999999
Max. speed 60M/min
Motor rated output 7.0kw
Quill axis Min. increment 1 (4000/cycle)
Motor rated output 1.2kw
Rotary Wire axis Min. increment 0.1 d
Max. Rotation 360 d
Max. Speed 75RPM
Motor rated output 5.5kw
Servo Spinner axis (S) Min. increment 1 (3200/cycle)
Max. speed 375RPM
Motor rated output 1.0kw
Computer   586 Industrial Computer
Memory Memory files 000~099
Steps/file N000~N399
Dimension 3000x1550x2050 mm
Weight 2800kgs


Our Services:

We can make spring sample for you before you order the machine, overseas installation and

training is avaliable. Feed back within 24 hours


Our advantages:

1. The factory has about 15 years experience in this field, and the Founder Mr Bai has witnessed

the Spring Industry development in China.

2. A complete production line from Design, Own Processing centre for spareparts & worktable,

Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.

3. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire

diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine

with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine

4. Quality first, QA/QC is one of the most important departments in our company.

5. Main market:   Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia,Turkey)

                           Africa (South Africa, Egypt,Tunisia),

                           Asia  (Korea, India, Malaysia, Vietnam, Iran, Thailand),

                           South America (Brazil, Argentina, Colombia, Cuba, Mexico)
