| Place of Origin: | China |
| Brand Name: | XinDing |
| Certification: | CE / ISO9001 |
| Model Number: | XD-208 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 10 working days after receiving your payment |
| Payment Terms: | TT LC |
| Supply Ability: | 20 sets per month |
| Product Name: | 2 Axis CNC Spring Coiling Machine | Feed Axis: | 750w |
|---|---|---|---|
| Wire Diameter: | 0.1--0.8mm | Cam Axis: | 750w |
| MAX.O.D: | 20mm | Max Speed: | 500pcs/min |
| High Light: | spring manufacturing machine,spring machinery |
||

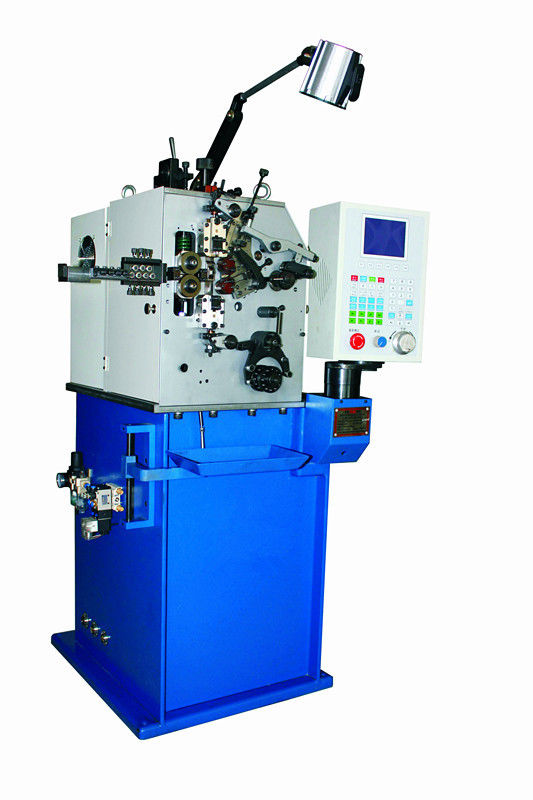

208 cnc spring coiling machine for the production of compression springs
Details:
Convenient mechanization,high speed and accuracy resulted from servo motion system.
1. XD-208 compression spring machine is a 2-axis spring machine consisting of wire feeding
axis and cam axis. The spring machine’s two axis can work independently of synchronously
according to the program.
2. The compression spring pitch, outside diameter and cutter are driven by the cam motors.
3. Production speed can be increased or decreased at any time running the machine.
Technical Parameter:
|
Model: |
XD-208 |
|
Wire diameter: |
φ0.10～0.80mm |
|
Axes: |
2 axes |
|
Maximum Outside Diameter: |
20mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
550pcs/min |
|
Feed Speed |
1200m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
1.0KW |
|
Cam Servo Motor: |
1.0KW |
|
Power AC: |
3-Phase 220V |
|
Dimensions (L*D*H): |
900X850X1600MM |
|
Wooden Case Dimensions |
1000x1050x1750mm |
|
Machine Weight: |
400Kg |
|
Gross Weights |
450Kg |
Product Range:
This compression spring machine can make various compression springs, wire coil, oil seal springs,
battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding
Sample springs:
