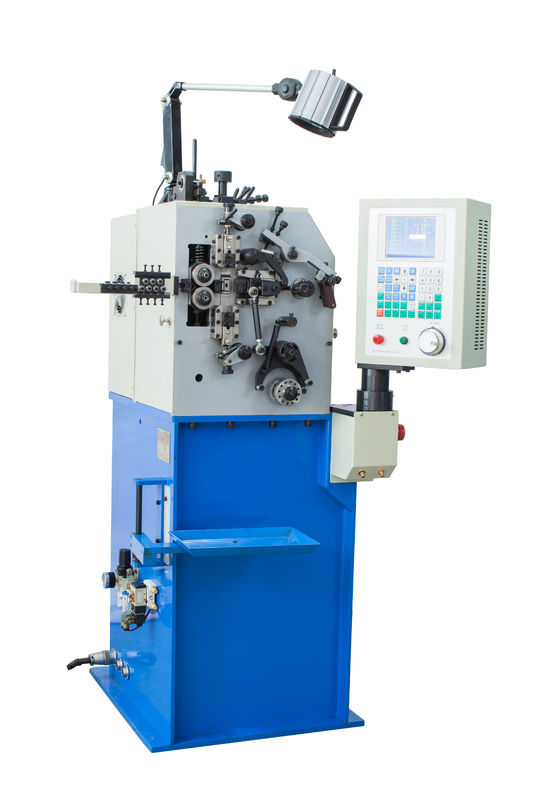

Two - axis Automatic CNC Spring Coiling Equipment Wire Feed Servo Motor 1.0 KW

Two - axis Automatic CNC Spring Coiling Equipment Wire Feed Servo Motor 1.0 KW

  • Two - axis Automatic CNC Spring Coiling Equipment Wire Feed Servo Motor 1.0 KW
Two - axis Automatic CNC Spring Coiling Equipment Wire Feed Servo Motor 1.0 KW
Product Details:
Place of Origin: China
Brand Name: XinDing
Certification: CE / ISO9001
Model Number: XD-208
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10 working days after receiving your payment
Payment Terms: TT LC
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: 2 Axis CNC Spring Coiling Machine Feed Axis: 750w
Wire Diameter: 0.1--0.8mm Cam Axis: 750w
MAX.O.D: 20mm Max Speed: 500pcs/min
High Light:

spring coiler


spring coiling machinery

Two - axis Automatic CNC Spring Coiling Machine High Accuracy  XD-208 For 0.10-0.80mm Wire Diameter



208 cnc spring coiling machine for the production of compression springs


Technical Parameter:




Wire diameter:



2 axes

Maximum Outside Diameter:


Maximum Feeding Length:


Maximum Manufacture Speed:


Feed Speed


Memory Number:


Wire Feed Servo Motor:


Cam Servo Motor:


Power AC:

3-Phase 220V

Dimensions (L*D*H):


Wooden Case Dimensions


Machine Weight:


Gross Weights





Convenient mechanization,high speed and accuracy resulted from servo motion system.

1. XD-208 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. The spring machine’s two axis can

work independently of synchronously according to the program.
2. The compression spring pitch, outside diameter and cutter are driven by the cam motors. The wire

 feeding is controlled by an independent motor.
3. The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.
4. Servo motion system and servo drive controlled,  5.7" control panel, easy to operate
5. Cam can be moved clockwise or anti-clockwise; Wire feed length can be change while running the machine.

6. Computer can automatically detect the  temperature of  the motor and slow down the running

 speed to protect the motor from overheating.
7. Computer can automatically decelerate according to the timing when the probe should be used.
8. Production speed can be increased or decreased at any time running the machine.
9. Optional accessories: Torsion device, oil seal device, prize-up device, length gauge.


Product Range:

This compression spring machine can make various compression springs, wire coil, oil seal springs,

battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding


Sample springs:


Two - axis Automatic CNC Spring Coiling Equipment Wire Feed Servo Motor 1.0 KW 0


Our advantages:


1. The factory has about 15 years experience in this field, and the Founder Mr Liu has about 32 years experience for manufacturing the Spring Machine who witnessed the Spring Industry development in China.


2. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.


3. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine


4. Quality first, QA/QC is one of the most important departments in our company.


5. Over 150 skilled worker, 48 technicians and one group of 20 engineers.


 6. Main market:   Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia,Turkey)

                                      Africa (South Africa, Egypt,Tunisia),

                                      Asia  (Korea, India, Malaysia, Vietnam, Iran, Thailand),

                                      South America (Brazil, Argentina, Colombia, Cuba, Mexico)


7. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.


 Our principle is "Quality first, Customer paramount, Keep improving"
