| Place of Origin: | China |
| Brand Name: | XD |
| Certification: | CE |
| Model Number: | XD-608 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case |
| Payment Terms: | TT LC |
| Supply Ability: | 20 sets per month |
| Axis Number:: | 6 | Wire Diameter:: | 0.1-0.8mm |
|---|---|---|---|
| Production Rate:: | 1000pcs/min | Accessory:: | Spring Length Gauge And Torsion Spring Device |
| Painting:: | Blue | Tooling:: | 8 Sets |
| High Light: | spring coiler,spring coiling machinery |
||

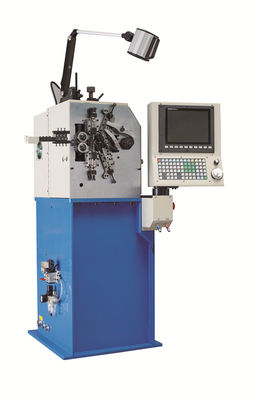

Six Axis CNC Spring Coiler with High Precision and 1000pcs / min production rate
Machine features:
1. Integrated design of cutter and mandrel.
2. Fieldbus controller, with fast reaction speed and good synchronism.
3. Faster conversion speed of left and right hand spring.
4. Computer can automatically detect the temperature of motor and slow down its running speed to protect motor from overheating.
5. Computer can automatically decelerate according to the timing when probe should be used.
6. Prodution rate can be increased or decreased at any time of operation.
7. Max speed reaches 1000pcs/min, absolutely a nice equipment for small coil springs.
Technical parameters:
| Model | XD-608 |
| Wire Diameter | 0.1-0.8mm |
| O.D | ￠25mm |
| Production Rate | 1000pcs/min |
| Feed Length | unlimited |

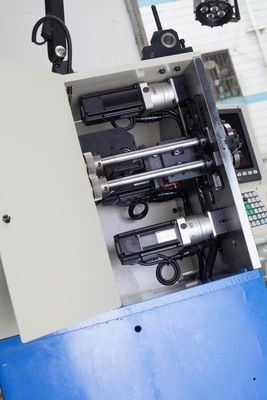

| Wire Feed | 0.75kw |
| Cutter | 0.4kw*2 |
| OD Axis | 0.4kw |
| Pitch | 0.4kw |
| Arbor back-and-forth | 0.4kw |
| Monitor Display | Chinese/English |
| Max. Value | 99999.99mm |
| Min.Value | 0.02mm |
| Memory | 150 Program Max 999 Lines for each program |
| Machine Dimension | 90*70*135cm |
| Machine Weight | 500kgs |
| Power | 220v 3p 50/60hz |
Sample spring:
Production toolings:
