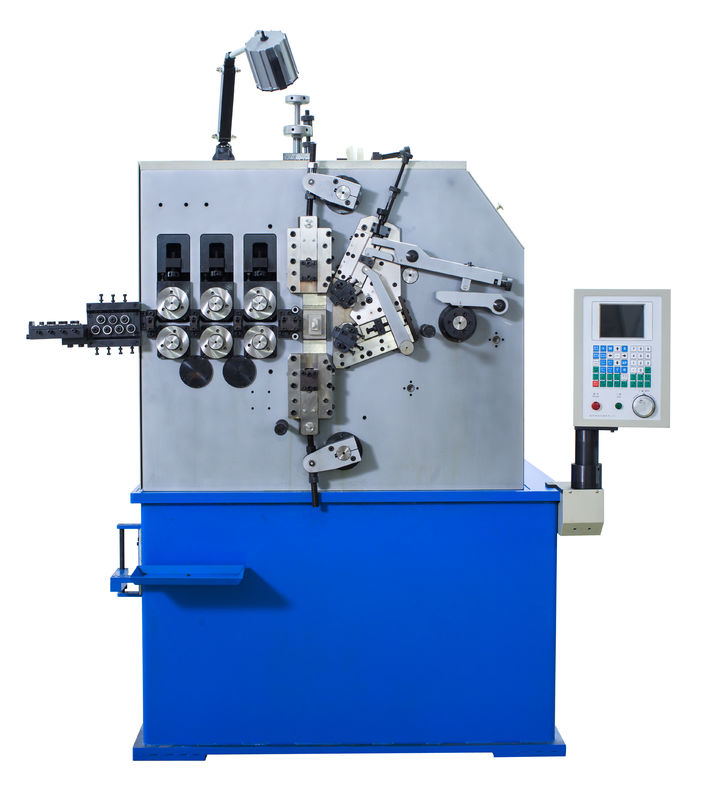

Automatical CNC Spring Coiling Machine Three Axis with Cam Servo Motor 5.5 KW

Automatical CNC Spring Coiling Machine Three Axis with Cam Servo Motor 5.5 KW

  • Automatical CNC Spring Coiling Machine Three Axis with Cam Servo Motor 5.5 KW
Automatical CNC Spring Coiling Machine Three Axis with Cam Servo Motor 5.5 KW
Product Details:
Place of Origin: China
Brand Name: XD
Certification: CE / ISO9001
Model Number: 340
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard heat treated wooden case
Delivery Time: 15 days
Payment Terms: TT LC
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Axis Number:: 3 Axis Servo Brand:: Sanyo Denki
Optional Tools:: Spring Length Gauge Mahchine Painting:: Blue
Package:: Wooden Case Gross Weight:: 1700kgs
High Light:

spring coiler

,

coil spring machine

XD-340 three axis CNC spring coiling machine for compression spring 150pcs/min


Technical Parameter:

Model:

XD-340

Wire diameter:

φ1.5~4.0 mm

Axes:

2 axes

Maximum Outside Diameter:

70 mm

Maximum Feeding Length:

unlimited

Maximum Manufacture Speed:

150pcs/min

Feed Speed

80m/min

Pitch Servo Motor:

1.5 KW

Wire Feed Servo Motor:

3.8 KW

Cam Servo Motor:

2.7 KW

Power AC:

3-Phase 220V

Dimensions (L*D*H):

1600X1200X1800mm

Wooden Case Dimensions

1700x1300x2000mm

Machine Weight:

1600Kg

Gross Weights

1700Kg


Details:
1. XD-340 compression spring machine is a 3-axis spring machine consisting of wire feeding axis,
pitch axis and cam axis. The spring machine’s two axes can act independently of synchronously
by build the progra.
2. 5.7" control panel ,easy to operate,
3. Cam can be moved clockwise or anti –clockwise:wire feed length can be changed while running

the machine,
4. Computer can automatically detect the temperature of the motor and slow down the running speed

to protect the motor from overheating,
5. Compute can automatically decelerate according to the timing when the probe should be used,
6. Prodution speed can be increased or decreased at any ting running the machine,
7. Not only does have the convenient mechanization,but also the high speed and accuracy resulted

from servo motion system.


Dongguan Xinding Mechanical Equipment Co.,Ltd

Dongguan Xinding Mechanical Equipment Co.,Ltd  is a production&sales combined company, with
more than 10 years of hard work,we accomplished to be a experienced and reliable CNC spring
machine supplier.
Our products are CNC compression spring machine and CNC universal spring making machine.
The machine covers spring wire diameter from 0.08mm to 6.0mm, including spring types like,
compressionsprings, torsional springs, extension springs, wire forms, abnormal-shaped springs ect.

Our Products
Compression spring machines: XD-208, XD-220, XD-230, XD-235, XD-345 series and versatile spring
 machine XD-CNC10, XD-CNC20 and XD-CNC35 universal series.

Why us

· 13 years of experience in this line

· All machines recieve good comments from customer

· Independent R&D ability

· Always happy to serve and work with our customers




Applicated products:
Automatical CNC Spring Coiling Machine Three Axis with Cam Servo Motor 5.5 KW 0
