| Place of Origin: | China |
| Brand Name: | XD |
| Certification: | CE / ISO9001 |
| Model Number: | CNC40 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | TT LC |
| Supply Ability: | 20 sets per month |
| Axis Number:: | 3-4 | Weight:: | 1300kg |
|---|---|---|---|
| Power Ac:: | 3-phase 220v 50hz | Optional Tools:: | Spinner |
| Servo Brand:: | Sanyo Denki | Package:: | Wooden Case |
| High Light: | spring making machinery,spring coiler machines |
||

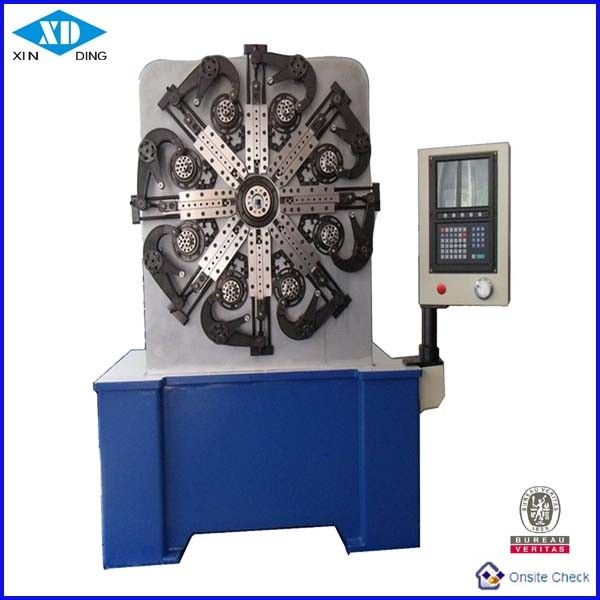

XD-CNC40 Universal spring making machine
Technical Parameter:
|
Model: |
XD-CNC40 |
|
Wire diameter: |
φ1.8～3.5 mm |
|
Axes: |
3-4 axes |
|
Maximum Outside Diameter: |
70mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed |
150m/min |
|
Memory Number: |
100 PCS |
|
Wire Feed Servo Motor: |
5.5 KW |
|
Cam Servo Motor: |
5.5 KW |
|
Quin Servo Motor |
1 KW |
|
Power AC: |
220V 3P 50/60Hz |
|
Dimensions (L*D*H): |
1800X140X800MM |
|
Wooden Case Dimensions |
2000x1600x1200mm |
|
Machine Weight: |
1300Kg |
|
Gross Weights |
1400Kg |
Details:
1. CNC40 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical action types: extruding, punching and molding.
2. The computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
3. Optional accessories: Spinner, cutting tools, rolling axis, safety door.
Sample springs:
