Universal Extension Spring Maker Machine Rotation Core System / Spring Machinery

Universal Extension Spring Maker Machine Rotation Core System / Spring Machinery

  • Universal Extension Spring Maker Machine Rotation Core System / Spring Machinery
Universal Extension Spring Maker Machine Rotation Core System / Spring Machinery
Product Details:
Place of Origin: China
Brand Name: XD
Certification: CE / ISO9001
Model Number: CNC-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard heat treated wooden case
Delivery Time: 20 days
Payment Terms: TT LC
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Axis Number:: 3 Axis Servo Brand:: Sanyo Denki
Machine Color:: Blue Painting Optional Tools:: Spinner
Machine Weight:: 900kgs Power Ac:: 380V 50Hz
High Light:

spring winder machine

,

spring coiling equipment

high precision 3-4 axis CNC20 extension spring machine 0.30-2.30mm steel wire 100pcs/min rate



XD-CNC20 universal spring forming machine



Technical Parameter:

Model:

XD-CNC20

Wire diameter:

φ0.3~2.3 mm

Axes:

3 axes

Maximum Outside Diameter:

40mm

Maximum Feeding Length:

unlimited

Maximum Manufacture Speed:

100pcs/min

Feed Speed

200m/min

Memory Number:

1000PCS

Wire Feed Servo Motor:

2.7 KW

Cam Servo Motor:

2.7 KW

Quin Servo Motor

0.75 KW

Power AC:

220V 3P 50/60Hz

Dimensions (L*D*H):

1400X550X1600MM

Wooden Case Dimensions

1600x600x1700mm

Machine Weight:

900Kg

Gross Weights

950Kg



Details:
1. CNC20 coiling spring machine consists of cam axis, wire feeding axis, rotation core and rolling

 axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three

mechanical part has eight sets of sliding blocks.The winch and cam rotation have three mechanical

action types: extruding,punching and molding.

2. The computerized cam rotation system can be set from 0.1-    359.9°, every two

wire feeding wheels constitutes of one group, totally two groups.
3. XD-CNC20 universal spring machine is equipped with XinDing spring machine controller.

The controller system can save 1000 material numbers. Axis location, feeding data, production

 speed and production output are displayed on the screen. The program data can be set and

 changed easily.
4. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards

and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°,

 also can control direction action or designated moves back and forth.
5. Optional accessories: Cutting tools, rolling axis, safety door.



Our advantages:

1. A complete production line from Design, Own Processing centre for spareparts & worktable,

Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system,

Finishing operation, Inspection centre, Testing team and Professional vacuum packing with

Fumigated wooden case.

2. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire

diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine

with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine

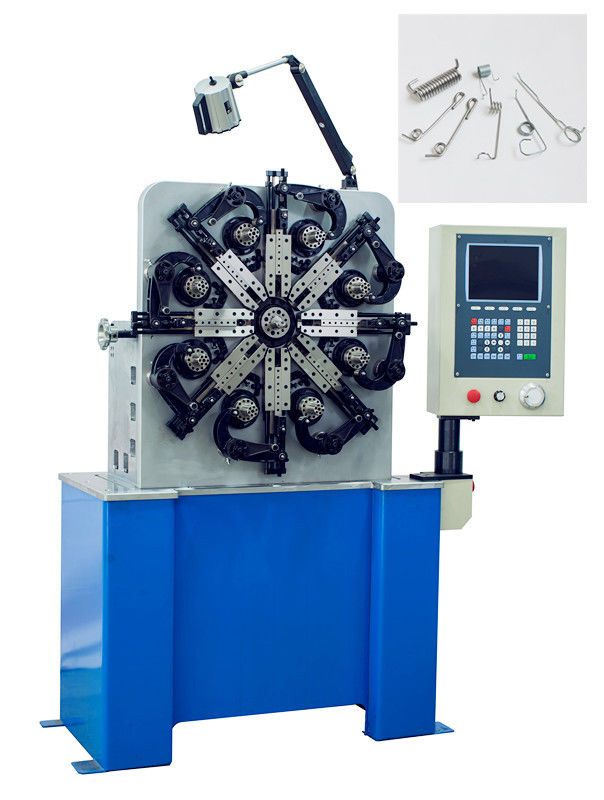

Machine front board:
