| Place of Origin: | China |
| Brand Name: | XD |
| Certification: | CE / ISO9001 |
| Model Number: | 230 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard heat treated wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | TT LC |
| Supply Ability: | 20 sets per month |
| Axis Number:: | 2 Axis | Servo Brand:: | Sanyo Denki |
|---|---|---|---|
| Optional Tools:: | Spring Length Gauge | Package:: | Wooden Case |
| Gross Weight:: | 1050kgs | Machine Painting:: | Blue |
| High Light: | spring manufacturing machine,spring machinery |
||

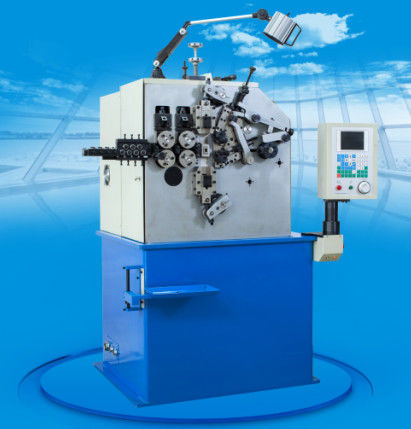

1.00-3.00mm two axis XD-230 computerised compression spring machine with high speed and accuracy
1.00-3.00mm Computerised XD-230 two axis spring coiling machine
Details:
1. XD-230 compression spring machine is a 2-axis spring machine consisting of wire feeding axis
and cam axis. The spring machine’s two axes can act independently of synchronously by build the program.
2. 5.7" control panel ,easy to operate,
3. Cam can be moved clockwise or anti –clockwise:wire feed length can be changed whise running
the machine,
4. Computer can automatically detect the temperature of the motor and slow down the running speed
to protect the motor from overheating,
5. Compute can automatically decelerate according to the timing when the probe should be used,
6. Prodution speed can be increased or decreased at any ting running the machine,
7. Not only does have the convenient mechanization,but also the high speed and accuracy resulted
from servo motion system.
Technical Parameter:
| Model: |
XD-230 |
|
Wire diameter: |
φ1.0～3.0mm |
|
Axes: |
2-3 axes |
|
Maximum Outside Diameter: |
50 mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
250pcs/min |
|
Feed Speed |
1350m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
3.8 KW |
|
Cam Servo Motor: |
2.7 KW |
|
Power AC: |
3-Phase 220V |
|
Dimensions (L*D*H): |
1200X1200X1700MM |
|
Wooden Case Dimensions |
1300x1300x1850mm |
|
Machine Weight: |
1000Kg |
|
Gross Weights |
1050Kg |
Our advantages:
1. The factory has about 15 years experience in this field, and the Founder Mr Bai witnessed the
Spring Industry development in China.
2. A complete production line from Design, Own Processing centre for spareparts & worktable,
Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.
3. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire
diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine
with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine
Applicated spring:
