| Place of Origin: | China |
| Brand Name: | XD |
| Certification: | CE / ISO9001 |
| Model Number: | 560 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 30 working days |
| Payment Terms: | TT LC |
| Supply Ability: | 20 sets per month |
| Axis Account:: | 5 Axis | Machine Weight:: | 2500kg |
|---|---|---|---|
| Power Ac:: | 3-phase 380v 50hz | Machine Painting:: | Grey White Or As Per Requested |
| Package:: | Wooden Case | Gross Weight:: | 3000kgs |
| High Light: | springs industrial machinery,spring coiler machine |
||

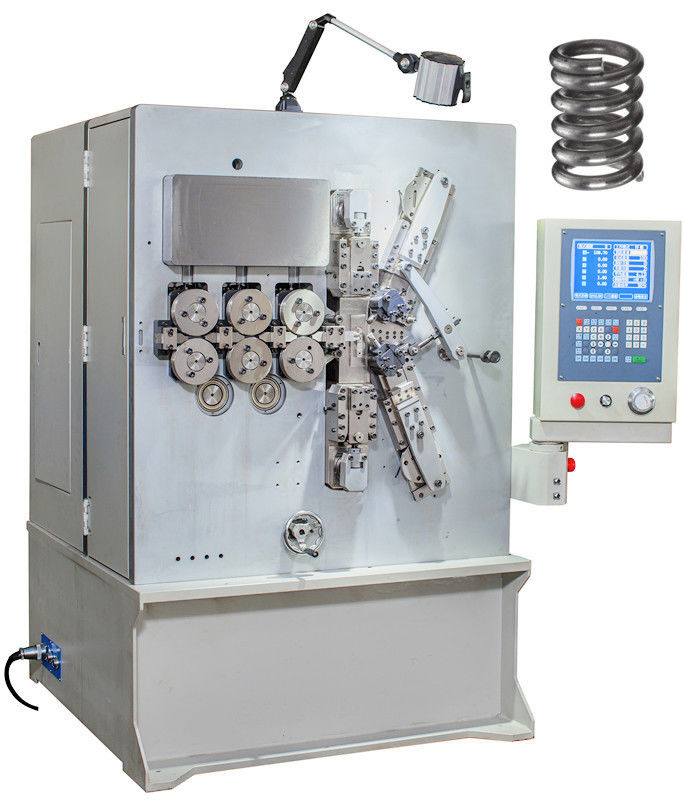

2.00-6.00mm Computerised XD-560 five axis spring coiling machine
Technical Parameter:
|
Model: |
XD-660 |
|
Wire diameter: |
Φ2.00～6.00 mm |
|
Axes: |
5 axes |
|
Maximum Outside Diameter: |
90 mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed |
80m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
15 KW |
|
Upper Cutter Servo Motor: |
3.8 KW |
|
Bottom Cutter Servo Motor: |
3.8 KW |
|
Pitch Servo Motor: |
2.7 KW |
|
OD Servo Motor: |
2.7 KW |
|
Power AC: |
3-Phase 220V |
|
Dimensions (L*D*H): |
1600X1200X1900mm |
|
Wooden Case Dimensions |
1800x1400x2100mm |
|
Machine Weight: |
2500Kg |
|
Gross Weights |
3000Kg |
Details:
1. XD-560 compression spring machine is a 5-axis spring machine consisting of wire feeding axis ,
upper cutter axis, bottom cutter axis, pitch axis. we ad d a spring OD controlling axis, all these
axis assures to make most precise springs with most efficiency.
2. The spring machine cutter can be adjusted inside and outside on computer easily and flexibly.thus
saving manual work.
3. Servo motion system and servo drive controlled, 15" control panel, easy to operate
4. All necessary work relating to spring production can be accomplished by finger on computer panel.
Product Range:
This spring coiling machine makes various kinds of compression springs, wire coil, taper springs,
double-taper springs, safe springs, clip spring as well as various simple wire molding, its products can be
applied to military, construction, motorcycles ect.
Our advantages:
1. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.
2. Main market: Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia,Turkey)
Africa (South Africa, Egypt,Tunisia),
Asia (Korea, India, Malaysia, Vietnam, Iran, Thailand
South America (Brazil, Argentina, Colombia, Cuba, Mexico)
3. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.
Our principle is "Quality first, Customer paramount, Keep improving"
Sample spring:
