Mechanical Performance Spring Testing Machine For Compressed And Tensile Force

Mechanical Performance Spring Testing Machine For Compressed And Tensile Force

  • Mechanical Performance Spring Testing Machine For Compressed And Tensile Force
Mechanical Performance Spring Testing Machine For Compressed And Tensile Force
Product Details:
Place of Origin: China
Brand Name: XD
Certification: CE / ISO9001
Model Number: AZ-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard heat treated wooden case
Delivery Time: 7 week
Payment Terms: TT LC
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Max Stroke:: 200mm Speed:: 1-300pcs/min
Package:: Wooden Case Load:: 5N
Weight:: 20kgs Power Ac:: 220v 50hz
High Light:

spring testing equipment

,

spring tester

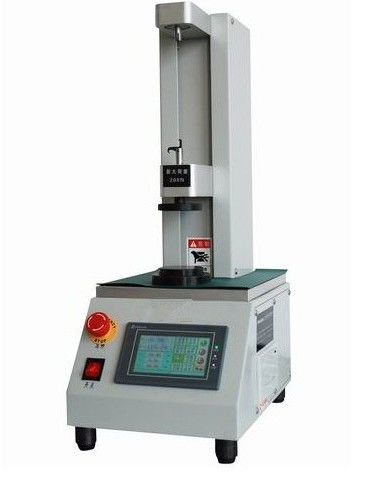

XD-AZ-5 spring testing machine  with accurate printed recording for compressed and tensile force



Technical parameters:

1.Model

PG-AZ-5

PG-AZ-20

PG-AZ-50

PG-AZ-100

2.Load

5N

20N

50N

100N

3.Min load value

0.0001N

0.001N

0.001N

0.01N

4.Unit

N,g

N, Kg,g

5.Load precision

±0.5%

6.Length precision

0.02mm

7.Max stroke

200mm

8.Speed

1~300mm/min

9.Table diameter

φ20mm

φ60mm

10.Manual movement value

1mm,0.1mm,0.01mm

11.Testing choice

compression or tension

12.Spring testing option

1,testing load by setting length 2,testing load by setting deformation

13.Size

220mm×330mm×500mm

14.Weight

20kg

15.Power ac

220V 0.5A
















































Main Applications:

The spring testing machine is mainly used to measure and analyze the mechanical performance ( tensile force, compressive force, displacement, and stiffness etc) of the springs ( cylinder spring, butterfly spring, tower-shaped spring, closing ring, flat spring,  deformed spring and other precision spring).
