| Place of Origin: | China |
| Brand Name: | XD |
| Certification: | CE / ISO9001 |
| Model Number: | CNC-20 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | TT LC |
| Supply Ability: | 30 sets per month |
| Axis Number:: | 3-4 | Optional Tools:: | Spinner |
|---|---|---|---|
| Servo Motor:: | Sanyo Denki | Machine Paintings:: | Blue |
| Package:: | Wooden Case | Gross Weight:: | 950kgs |
| High Light: | spring coiling machinery,cnc spring machine |
||

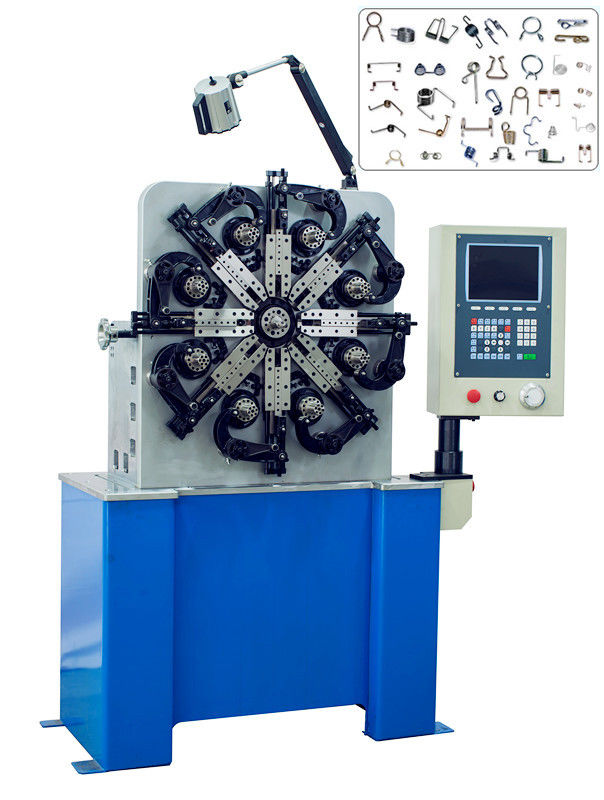

3-axis CNC20 CNC wire forming machine for steel wire diameter 0.30-2.30mm
XD-CNC20 universal wire forming machine
Technical Parameter:
|
Model: |
XD-CNC20 |
|
Wire diameter: |
φ0.3～2.3 mm |
|
Axes: |
3 axes |
|
Maximum Outside Diameter: |
40mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed |
200m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
2.7 KW |
|
Cam Servo Motor: |
2.7 KW |
|
Quin Servo Motor |
0.75 KW |
|
Power AC: |
220V 3P 50/60Hz |
|
Dimensions (L*D*H): |
1400X550X1600MM |
|
Wooden Case Dimensions |
1600x600x1700mm |
|
Machine Weight: |
900Kg |
|
Gross Weights |
950Kg |
Details:
1. The computerized cam rotation system can be set from 0.1- 359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
2. XD-CNC20 universal spring machine is equipped with XinDing spring machine controller. The controller system can save 1000 material numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.
3. Optional accessories: Cutting tools, rolling axis, safety door.
Sample spring:
