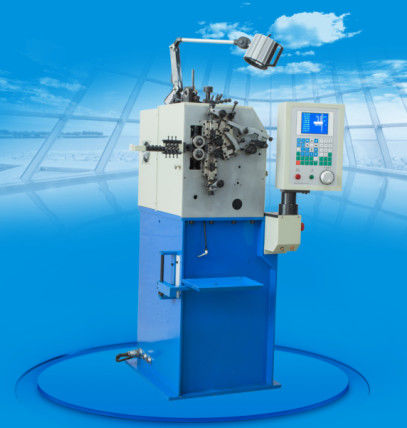

Computer Controlled Compression Spring Machine With Cam Servo Motor 1.0KW

Computer Controlled Compression Spring Machine With Cam Servo Motor 1.0KW

  • Computer Controlled Compression Spring Machine With Cam Servo Motor 1.0KW
Computer Controlled Compression Spring Machine With Cam Servo Motor 1.0KW
Product Details:
Place of Origin: China
Brand Name: XinDing
Certification: CE / ISO9001
Model Number: XD-208
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10 working days after receiving your payment
Payment Terms: TT LC
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: 2 Axis CNC Spring Coiling Machine Feed Axis: 750w
Wire Diameter: 0.1--0.8mm Cam Axis: 750w
MAX.O.D: 20mm Max Speed: 500pcs/min
High Light:

spring machinery

,

spring former

Compression Spring Machine High Accuracy For Coil Spring XD-208 Model 550pcs/min



208 cnc spring coiling machine for the production of compression springs



Technical Parameter:

Model:

XD-208

Wire diameter:

φ0.10~0.80mm

Axes:

2 axes

Maximum Outside Diameter:

20mm

Maximum Feeding Length:

unlimited

Maximum Manufacture Speed:

550pcs/min

Feed Speed

1200m/min

Memory Number:

1000PCS

Wire Feed Servo Motor:

1.0KW

Cam Servo Motor:

1.0KW

Power AC:

3-Phase 220V

Dimensions (L*D*H):

900X850X1600MM

Wooden Case Dimensions

1000x1050x1750mm

Machine Weight:

400Kg

Gross Weights

450Kg



Details:

Convenient mechanization,high speed and accuracy resulted from servo motion system.

1. XD-208 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. The spring machine’s two axis

can work independently of synchronously according to the program.
2. The compression spring pitch, outside diameter and cutter are driven by the cam motors. The

wire feeding is controlled by an independent motor.

3. Computer can automatically decelerate according to the timing when the probe should be used.


Product Range:
This compression spring machine can make various compression springs, wire coil, oil seal springs,

battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding



Sample springs:

Computer Controlled Compression Spring Machine With Cam Servo Motor 1.0KW 0
