| Place of Origin: | China |
| Brand Name: | XD |
| Certification: | CE / ISO9001 |
| Model Number: | CNC-35 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard heat treated wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | TT LC |
| Supply Ability: | 20 sets per month |
| Axis Number:: | 3-4 | Optional Tooling:: | Spinner |
|---|---|---|---|
| Servo Brand:: | Sanyo Denki | Machine Color:: | Blue Paintings |
| Machine Weight:: | 1300kgs | Package:: | Wooden Case |
| High Light: | spring making machines,spring making equipment |
||

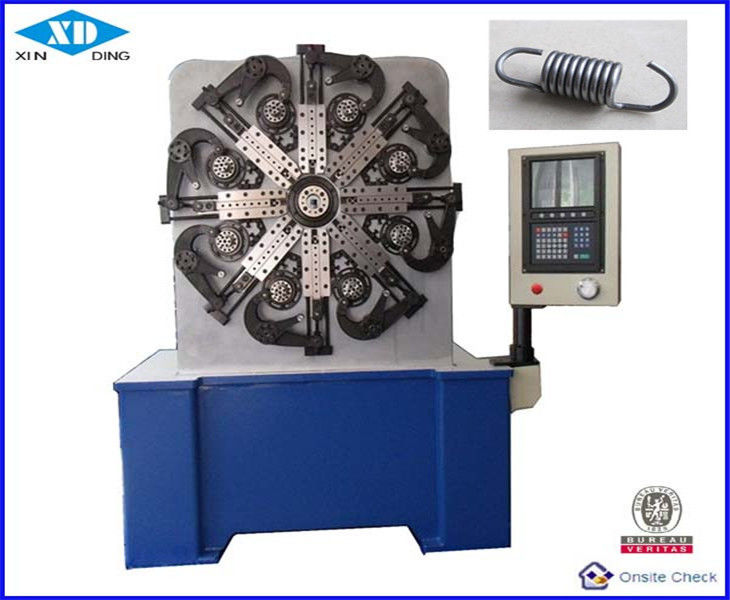

CNC-35 universal purpose spring making machine
Technical Parameter:
| Model: |
XD-CNC35 |
|
Wire diameter: |
φ1.8～3.5 mm |
|
Axes: |
3-4 axes |
|
Maximum Outside Diameter: |
70mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed |
150m/min |
|
Memory Number: |
100 PCS |
|
Wire Feed Servo Motor: |
5.5 KW |
|
Cam Servo Motor: |
5.5 KW |
|
Quin Servo Motor |
1 KW |
|
Power AC: |
220V 3P 50/60Hz |
|
Dimensions (L*D*H): |
1800X140X800MM |
|
Wooden Case Dimensions |
2000x1600x1200mm |
|
Machine Weight: |
1300Kg |
|
Gross Weights |
1400Kg |
Details:
1. The computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
2. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°, also can control direction action or designated moves back and forth.
3. Optional accessories: Cutting tools, rolling axis, safety door.
Why us:
· 13 years of experience in this line
· All machines recieve good comments from customer
· Independent R&D ability
· Always happy to serve and work with our customers
To order:
· Show us what you need
· Provide the suitable machine as per your requirement
· Arrange production after 30% payment
· Ship the goods after full payment
· Following your machine until it reaches its destination
