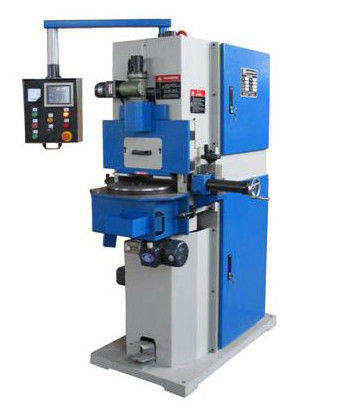

CNC Controlled Spring End Grinding Machine High Precision , 0.30 - 2.00mm Wire Diameter

CNC Controlled Spring End Grinding Machine High Precision , 0.30 - 2.00mm Wire Diameter

  • CNC Controlled Spring End Grinding Machine High Precision , 0.30 - 2.00mm Wire Diameter
CNC Controlled Spring End Grinding Machine High Precision , 0.30 - 2.00mm Wire Diameter
Product Details:
Place of Origin: China
Brand Name: Xinding
Certification: CE / ISO9001
Model Number: XDM-50-2E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard heat treated wooden case
Delivery Time: 15 days
Payment Terms: TT LC
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Wire Diameter: 0.30-2.00mm Power: 2kw
Weight: 800kg Package:: Wooden Case
Control:: CNC Precision: High
Highlight:

spring grinding machine

,

spring end grinder

CNC controlled spring end grinding machine for grinding all types of springs



Technical Parameter:

1.Gringding Wheel

Ф175*50mm

2. Feeding Plate

Ф320mm

3. MAX.O.D

Ф3-30mm

4. Wire Diameter

Ф 0.3-2mm

5. Spring Height

5-50mm

6. Power

2KW

7. Overall Dimension

L800*W1100*H1700 mm

8. Weight

800KG



Details:

Vertical double surface grinding machine with CNC control.
This machine is equipped with Mitsubishi CNC system to control grinding process on both ends of springs simultaneously.
Feeding speed of grinding heads is adjustable on the basis of pressure from springs.
Fine grinding process is available,as well as compensation function on grinding wheels. The grinding process is operated manually and automatically.
For replacing is very suitable  for high-precision grinding proposal.
