| Place of Origin: | China |
| Brand Name: | XD |
| Certification: | CE / ISO9001 |
| Model Number: | 300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard heat treated wooden cases |
| Delivery Time: | 7 days |
| Payment Terms: | TT LC |
| Supply Ability: | 50 sets per month |
| Application:: | Auxilliary Equipment For Spring Machine | Machine Painting:: | Blue |
|---|---|---|---|
| Package:: | Wooden Case | Motor:: | 1.0kw |
| Diameter Of Table:: | 830mm | Speed Of Table:: | 150rpm |
| High Light: | wire feeding machine,wire feeding equipment |
||

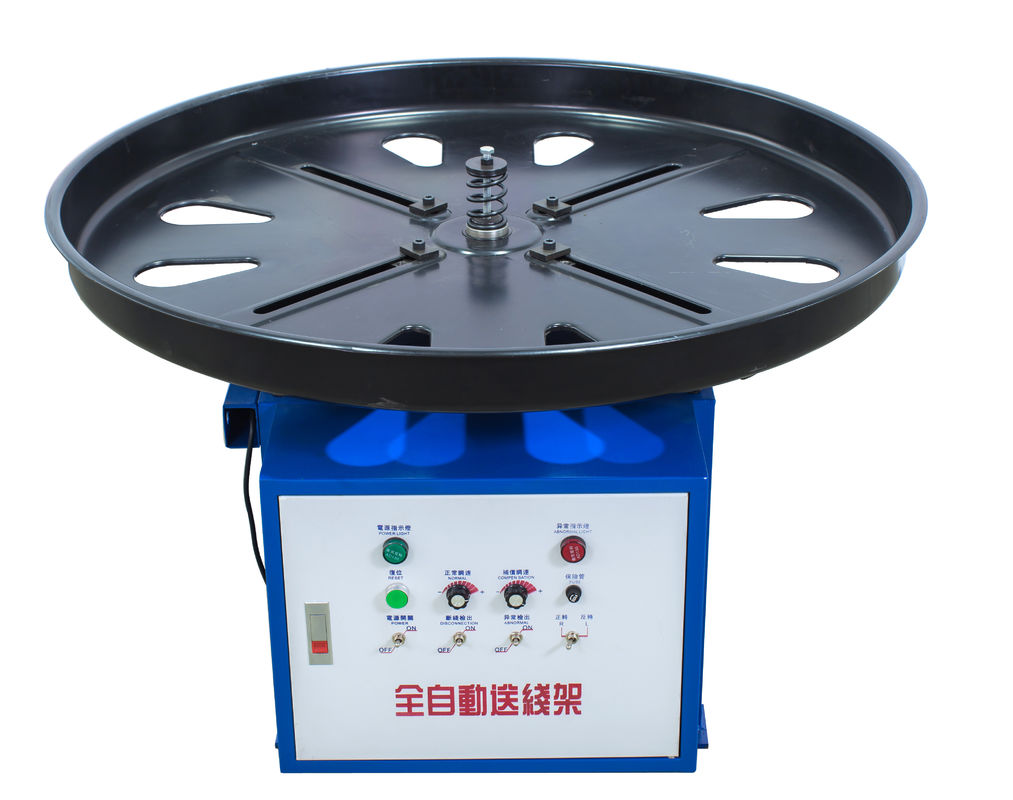

CNC spring machine auxiliary equipment of wire decoiler 300kg loading
Technical specifications:
|
Model |
XD-300 |
|
Max Capacity of load |
300KG |
|
Max Speed Of Table |
150rpm |
|
Diameter Of Table |
830mm |
|
Motor |
1.0KW |
|
Dimensions |
550 * 500 * 780 mm |
|
Weight |
80KG |
Product Description:
Automatic spring wire decoiler is applying with the CNC spring forming machine. It is stable and durable. Itwill stop automatically when the feeding is abnormal. The wire feed rate can be automatically adjusted during working, synchronizing the speed with the spring forming machine. It will stop automatically in case of faults like kinking of wire.
Features Of spring wire decoiler
1, Wrap lines warning function
2, Short lines warning function
3, To move the feeding
4, Automatic feeding
5, Manually even feeding
