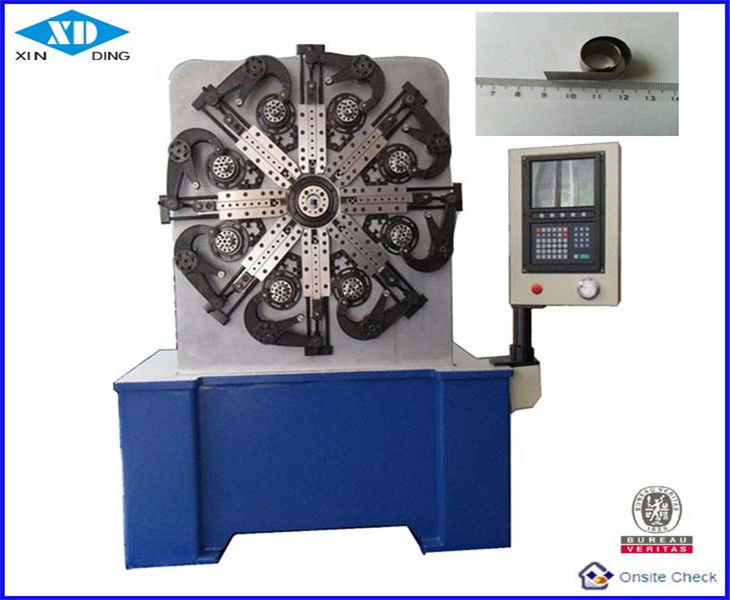

5.5 KW 220V CNC Spring Making Machine / Flat Wire Spring Forming Machine

5.5 KW 220V CNC Spring Making Machine / Flat Wire Spring Forming Machine

  • 5.5 KW 220V CNC Spring Making Machine / Flat Wire Spring Forming Machine
5.5 KW 220V CNC Spring Making Machine / Flat Wire Spring Forming Machine
Product Details:
Place of Origin: China
Brand Name: XD
Certification: CE / ISO9001
Model Number: CNC35
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard heat treated wooden case
Delivery Time: 20 days
Payment Terms: TT LC
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Axis Number:: 3 Servo Brand:: Sanyo Denki
Optional Tooling:: Spinner Painting:: Blue
Package:: Wooden Case Gross Weight:: 1400kgs
High Light:

spring coiler machines

,

spring maker machine

3-axis XD-CNC35 Universal CNC spring making machine for spring of flat wire





3-axis XD-CNC35 Universal spring making machine



Technical Parameter

Model:

XD-CNC35

Wire diameter:

φ1.8~3.5 mm

Axes:

3-4 axes

Maximum Outside Diameter:

70mm

Maximum Feeding Length:

unlimited

Maximum Manufacture Speed:

100pcs/min

Feed Speed

150m/min

Memory Number:

100 PCS

Wire Feed Servo Motor:

5.5 KW

Cam Servo Motor:

5.5 KW

Quin Servo Motor

1 KW

Power AC:

220V 3P 50/60Hz

Dimensions (L*D*H):

1800X140X800MM

Wooden Case Dimensions

2000x1600x1200mm

Machine Weight:

1300Kg

Gross Weights

1400Kg



Details:
1. CNC35 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical action types: extruding, punching and molding.
2. XD-CNC35 universal spring machine is equipped with XinDing spring machine controller. The controller

system can save 1000 material numbers. Axis location, feeding data, production speed and production

output are displayed on the screen. The program data can be set and changed easily.
3. Optional accessories: Cutting tools, rolling axis, safety door.



Sample springs:

5.5 KW 220V CNC Spring Making Machine / Flat Wire Spring Forming Machine 0
