| Place of Origin: | China |
| Brand Name: | XD |
| Certification: | CE / ISO9001 |
| Model Number: | 208 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 15 days |
| Payment Terms: | TT LC |
| Supply Ability: | 50 sets per month |
| Axis Number:: | 2 Axis | Servo Brand:: | Sanyo Denki |
|---|---|---|---|
| Computer Brand:: | Yitu | Optional Tools:: | Spring Length Gauge And Torsional Spring Device |
| Package:: | Wooden Case | Gross Weight:: | 450kgs |
| Option:: | Spring Length Gauge | ||
| High Light: | spring machinery,spring former |
||

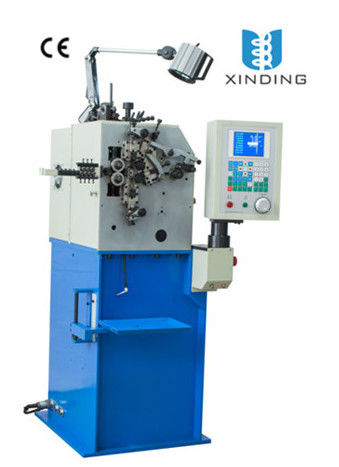

3 Phase 220v Spring Coiling Machines 0.07～0.80mm Wire Diameter
CNC 2-axis spring coiling machine
Technical Parameter:
|
Model: |
XD-208 |
|
Wire diameter: |
φ0.07～0.80mm |
|
Axes: |
2 axes |
|
Maximum Outside Diameter: |
20mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
550pcs/min |
|
Feed Speed |
1200m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
1.0KW |
|
Cam Servo Motor: |
1.0KW |
|
Power AC: |
3-Phase 220V |
|
Dimensions (L*D*H): |
900X850X1600MM |
|
Wooden Case Dimensions |
1000x1050x1750mm |
|
Machine Weight: |
400Kg |
|
Gross Weights |
450Kg |
Details:
Convenient mechanization,high speed and accuracy resulted from servo motion system.
1. XD-208 compression spring machine is a 2- axis spring machine consisting of wire feeding
axis and cam axis. The spring machine’s two axis can work independently of synchronously
according to the program.
2. The compression spring pitch, outside diameter and cutter are driven by the cam motors. The
wire feed ing is controlled by an independent motor.
3. The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.
Product Range:
This compression spring machine can make various compression springs, wire coil, oil seal springs,
battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various
simple wire molding
Our advantages:
1. The factory has about 15 years experience in this field, and the Founder Mr Bai has witnessed
the Spring Industry development in China.
2. A complete production line from Design, Own Processing centre for spareparts & worktable,
Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.
3. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire
diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine
with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine
4. Quality first, QA/QC is one of the most important departments in our company.
5. Main market: Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia,Turkey)
Africa (South Africa, Egypt,Tunisia),
Asia (Korea, India, Malaysia, Vietnam, Iran, Thailand),
South America (Brazil, Argentina, Colombia, Cuba, Mexico)
Machine pneumatic part:
