| Place of Origin: | China |
| Brand Name: | XinDing |
| Certification: | CE / ISO9001 |
| Model Number: | XD-316 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 10 working days after receiving your payment |
| Payment Terms: | TT LC |
| Supply Ability: | 20 sets per month |
| Product Name: | 3 Axis CNC Spring Coiling Machine | Feed Axis: | 2.7kw |
|---|---|---|---|
| Wire Diameter: | 0.2--2.0mm | Cam Axis: | 2.7kw |
| MAX.O.D: | 20mm | Pitch Axis: | 750w |
| Max Speed: | 500pcs/min | ||
| High Light: | spring coiler machines,spring maker machine |
||

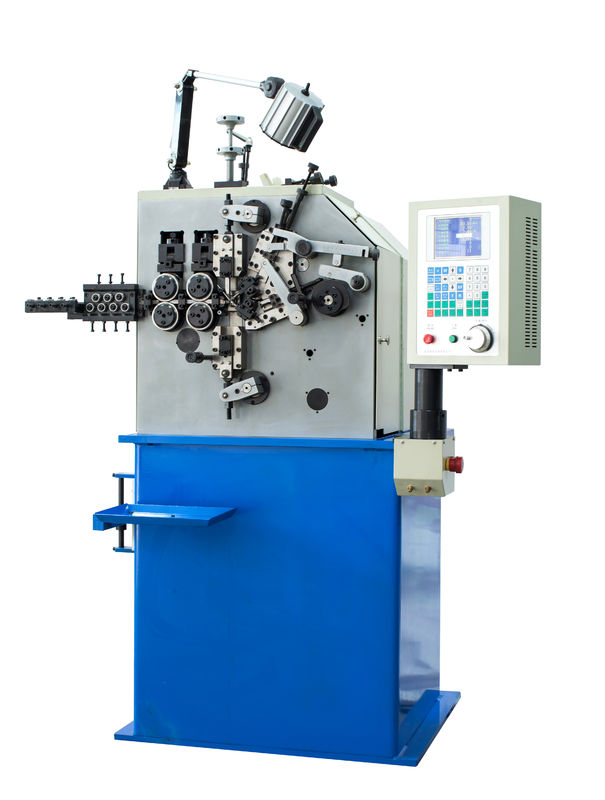

XD-316 cnc spring coiling machine for the production of compression springs
Technical Parameter:
|
Model: |
XD-316 |
|
Wire diameter: |
φ0.20～2.00 mm |
|
Axes: |
3 axes |
|
Maximum Outside Diameter: |
45 mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
300pcs/min |
|
Feed Speed |
1550m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
2.7 KW |
|
Cam Servo Motor: |
2.7 KW |
|
Pitch Servo Motor: |
750w |
|
Power AC: |
3-Phase 220V |
|
Dimensions (L*D*H): |
900X850X1600mm |
|
Wooden Case Dimensions |
1100x1100x1600mm |
|
Machine Weight: |
800Kg |
|
Gross Weights |
850Kg |
Details:
Convenient mechanization,high speed and accuracy resulted from servo motion system.
1. XD-316 compression spring machine is a 3-axis spring machine consisting of wire feeding axis and cam axis, pitch axis, the spring machine’s three
axis can work independently of synchronously according to the program.
2. Computer can automatically decelerate according to the timing when the probe should be used.
3. Production speed can be increased or decreased at any time running the machine.
4. Optional accessories: Torsion device, oil seal device, prize-up device, length gauge.
Product Range:
This spring coiling machine makes various kinds of compression springs, wire coil, taper springs,
double-taper springs, safe springs, clip spring as well as various simple wire molding,
its products can be applied to military, construction, motorcycles ect.
Sample springs:
