| Place of Origin: | China |
| Brand Name: | XD |
| Certification: | CE / ISO9001 |
| Model Number: | 208 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 10 days |
| Payment Terms: | TT LC |
| Supply Ability: | 40 sets per month |
| Axis Number:: | 2 | Optional Tools:: | Torsional Device And Spring Length Gauge |
|---|---|---|---|
| Servo Brand:: | Sanyo Denki | Machine Painting:: | Blue |
| Package:: | Wooden Case | Gross Weight:: | 450kgs |
| High Light: | spring winding machine,spring makers |
||

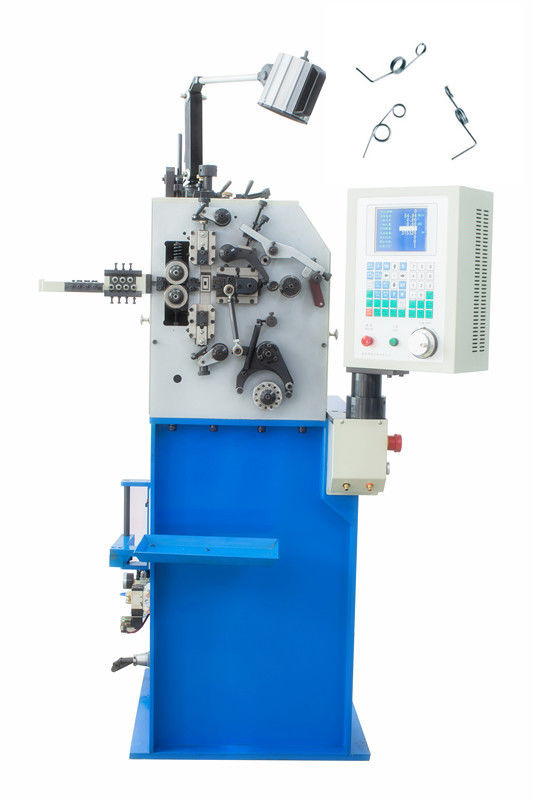

XD-208 CNC spring coiling machine
Technical Parameter:
|
Model: |
XD-208 |
|
Wire diameter: |
φ0.07～0.80mm |
|
Axes: |
2 axes |
|
Maximum Outside Diameter: |
20mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
550pcs/min |
|
Feed Speed |
1200m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
1.0KW |
|
Cam Servo Motor: |
1.0KW |
|
Power AC: |
3-Phase 220V |
|
Dimensions (L*D*H): |
900X850X1600MM |
|
Wooden Case Dimensions |
1000x1050x1750mm |
|
Machine Weight: |
400Kg |
|
Gross Weights |
450Kg |
Details:
Convenient mechanization,high speed and accuracy resulted from servo motion system.
1. XD208 compression spring machine is a 2 axis spring machine consisting of wire feeding axis
and cam axis. The spring machine’s two axis can work independently of synchronously according
to the program. What’s more, extra torsional spring device is added to enhance its ability to
torsional spring production.
2. The spring pitch, outside diameter and cutter are driven by the cam motors. The wire feeding is
controlled by an independent motor.
3. The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.
4. Servo motion system and servo drive controlled, 5.7" control panel, easy to operate
5. Cam can be moved clockwise or anti-clockwise; Wire feed length can be change while running the machine.
6. Computer can automatically detect the temperature of the motor and slow down the running
speed to protect the motor from overheating.
7. Computer can automatically decelerate according to the timing when the probe should be used.
8. Production speed can be increased or decreased at any time running the machine.
9. Optional accessories: Torsion device, oil seal device, prize-up device, length gauge.
Product Range:
This compression spring machine can make various compression springs, wire coil, oil seal springs,
battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding.
