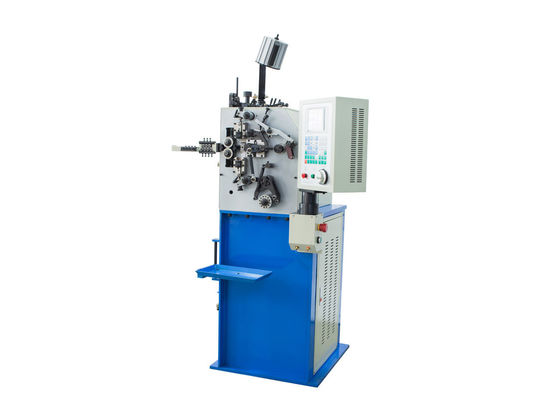

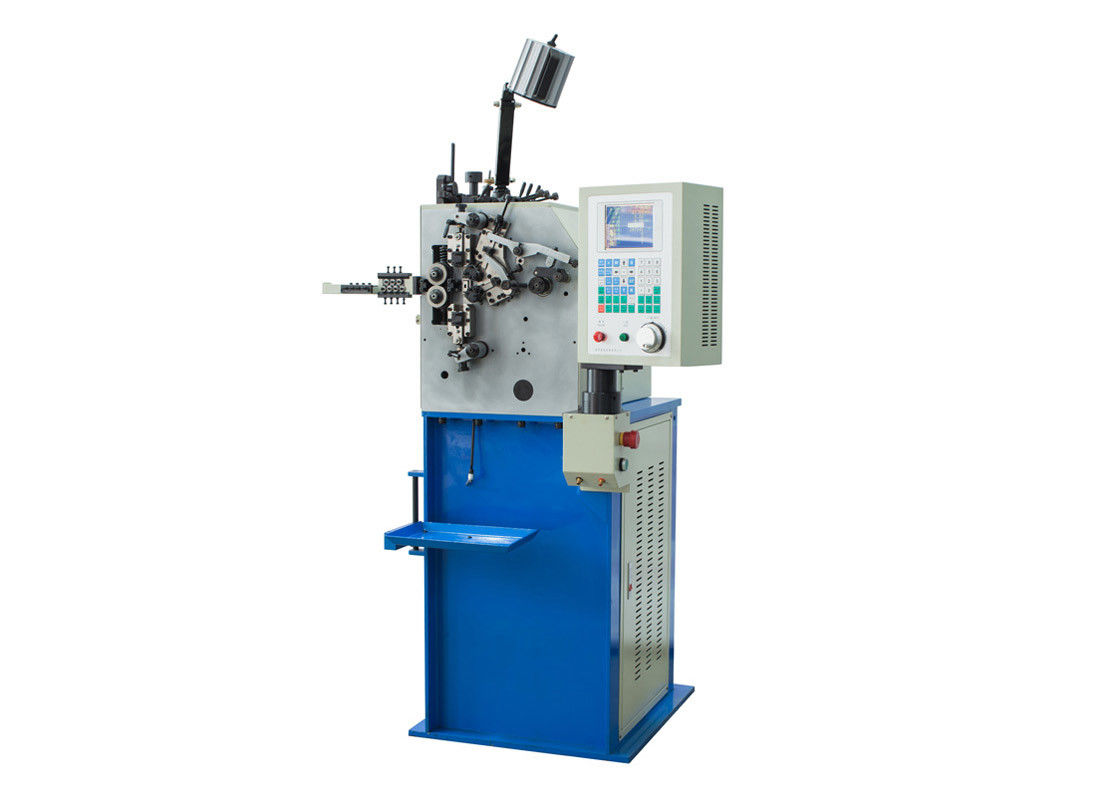

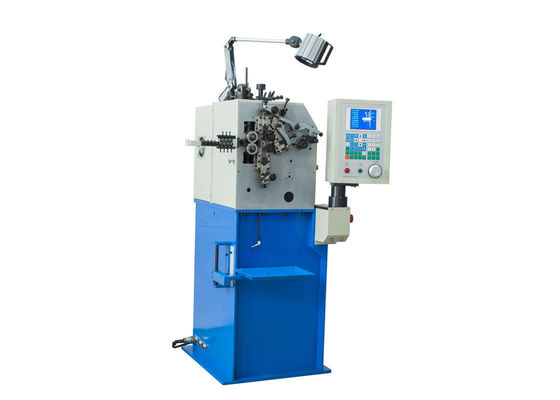

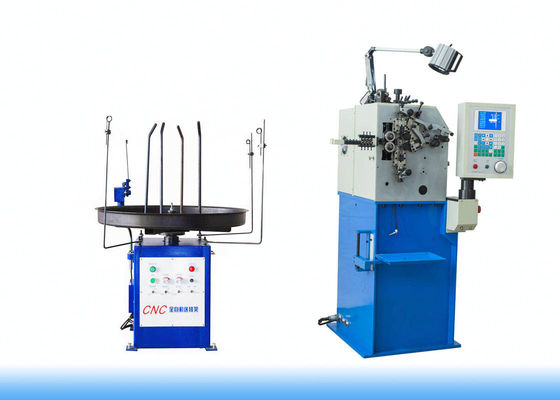

2 Axis CNC Spring Coiler Speed Reaches 550 Pcs / Min Within Wire Dia Φ0.15 - 8.0mm

2 Axis CNC Spring Coiler Speed Reaches 550 Pcs / Min Within Wire Dia Φ0.15 - 8.0mm

2 Axis CNC Spring Coiler Speed Reaches 550 Pcs / Min Within Wire Dia Φ0.15 - 8.0mm
video
2 Axis CNC Spring Coiler Speed Reaches 550 Pcs / Min Within Wire Dia Φ0.15 - 8.0mm
Product Details:
Place of Origin: China
Brand Name: Xinding
Certification: CE / ISO9001
Model Number: XD-208
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Wire Dia: Φ0.15-8.0mm Axis Count: 2 Axis
MAX. OD: Φ20mm Max. Speed: 550pcs/min
Feed Axis: 0.75kw Cam Axis: 0.75kw
Feed Speed: 0~300m/min Machine Color: Gray
Weight: 400kg Dimension(L*W*H): 900*850*1600mm
High Light:

spring coiler

,

spring coiling machinery


Product Introduce
  208 three axis cnc spring coiling machine for the production of compression springs

Technical Parameter

1

      Model

      XD-208

2

      Wire Diameter

      Φ0.10~0.80mm

3

      Axis Count

      2 axis

4

      Max. Outside Diameter

      Φ20mm

5

      Max. Feeding Length

      Unlimited

6

      Max. Manufacture Speed

      550pcs/min

7

      Feeding Speed

      0~300m/min

8

      Wire Feed Servo Motor

      0.75kw

9

      Cam Servo Motor

      0.75kw

10      Feed Setting Value      Y: 0.01-9999.99mm
10

      Controller

      Taiwan Yitu

11

      Motor Brand

      Japanese Sanyo Denki

12

      Dimensions (L*D*H)

      900*850*1600mm

13

      Wooden Case Dimensions

      1000*1050*1750mm

14

      Machine Weight:

      400kg

15

      Gross Weights

      450kg


Details:

1.  Two or three axis which can work in single-step or synchronously.
2.  Equipped with right or left-handed winding blade rest.
3.  Spring programs can be saved to the computers internal memory.
4.  Computer interface displayed in Chinese and English makes the operation easy.



Product Range:
This compression spring machine can make various compression springs, wire coil, oil seal springs,

battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various
simple wire molding

Sample springs:
2 Axis CNC Spring Coiler Speed Reaches 550 Pcs / Min Within Wire Dia Φ0.15 - 8.0mm 0
