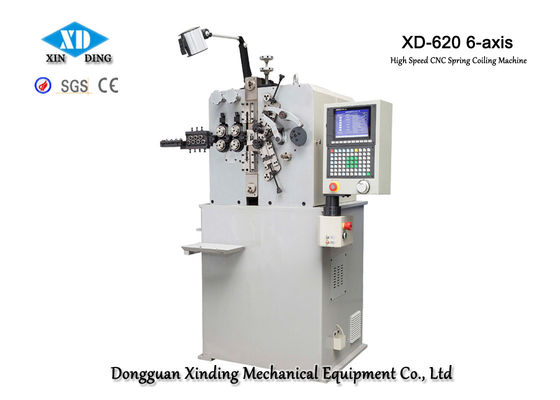

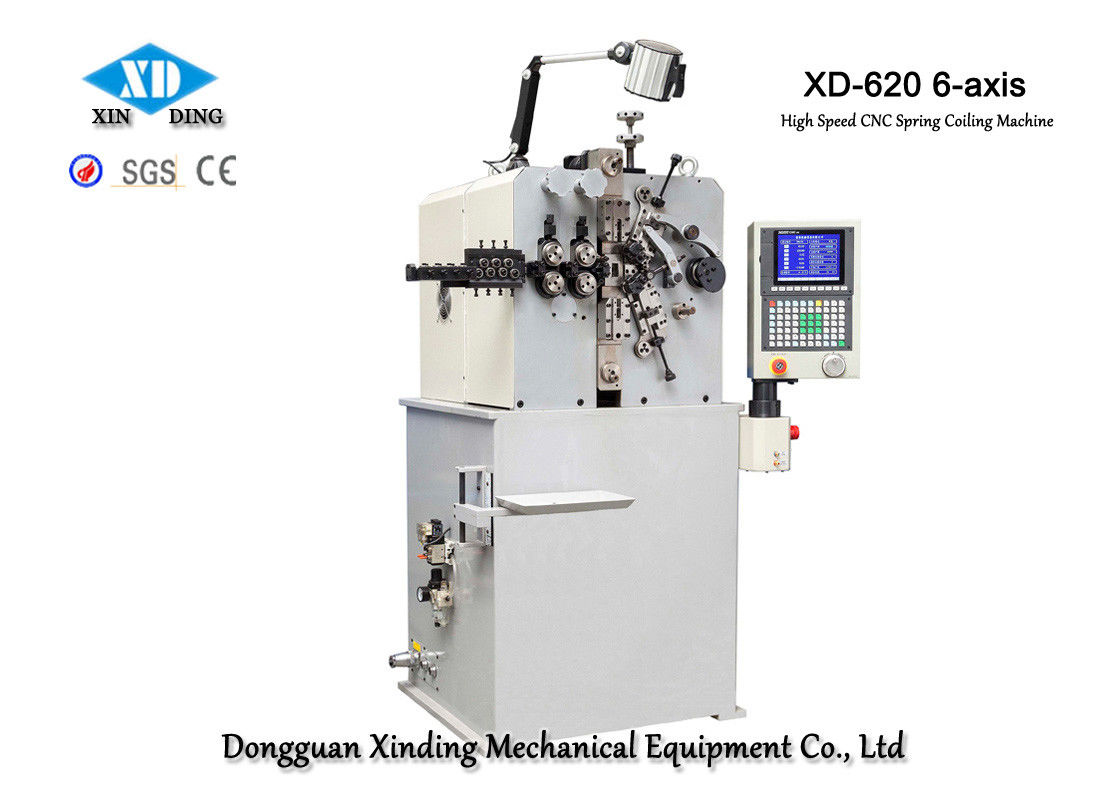

XD-620 6-Axis High Speed Spring Coiling Machine For Making Springs Efficiently

XD-620 6-Axis High Speed Spring Coiling Machine For Making Springs Efficiently

  • XD-620 6-Axis High Speed Spring Coiling Machine For Making Springs Efficiently
  • XD-620 6-Axis High Speed Spring Coiling Machine For Making Springs Efficiently
  • XD-620 6-Axis High Speed Spring Coiling Machine For Making Springs Efficiently
  • XD-620 6-Axis High Speed Spring Coiling Machine For Making Springs Efficiently
XD-620 6-Axis High Speed Spring Coiling Machine For Making Springs Efficiently
Product Details:
Place of Origin: China
Brand Name: Xinding
Certification: CE / ISO9001
Model Number: XD-620
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 20 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Wire Diameter: Φ0.5-2.0mm Axis Count: 6 Axis
Application: Spring Coiling Decoiler Load: 100kg
Painting: Grey Production Rate: 300pcs/min
Computer: Hust In Taiwan Servo Motor: Sanyo Denki
Weight: 1000kg Dimension(L*W*H): 1100*900*1600mm
Highlight:

spring coiler

,

spring coiling machinery



Product Introduce

  XD-620 six axis high speed CNC spring coiling machine applied in springs of wire diameter 0.5mm to 2.0mm, and has a very wide range of applications in the industrial field, which is aimed to manufacture all type of precision compression springs like coil springs, tower or tip springs, convex or concave springs, equal or unequal pitch springs and reducing springs, etc. At the same time, some simple torsion springs and tension springs can also be produced.

  It is developed on basis of traditional two axis spring coiler and which has totally equiped six axis to work synchronously or separately, including one wire feed servo motor, two cutter servo motors, one spring OD control servo motor, one arbor control (back and forth) servo motor and one pitch control servo motor. More importantly, it is capable of high speed, high precision and stability, very practical and easy to operate.



Machine Feature

◇ Spring outside diameter directly adjusted by servo, arbor can move back and forth with also servo contro.

Faster change over of left and right hand spring.

Computer with USB interface, operator can upload file or parameters on their own.

Prodution rate can be increased or decreased at any time of operation.

Compared with traditional two axis spring coiler, it largely save user's time in product adjustment and tooling set up.

Safty door, spring length gauge and sorter availabe.

◇ The optional device: the spring length gauge/sensor.

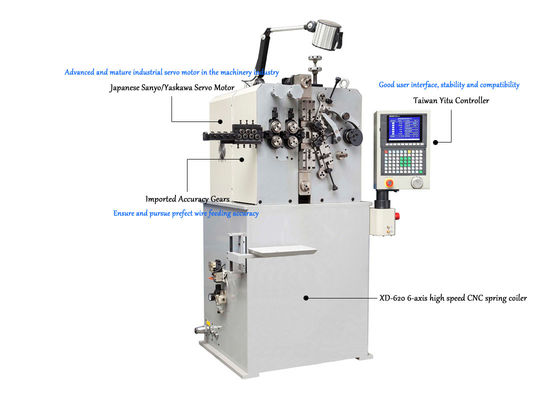

Machine Structure

Machine Structure



Technical Parameter

1       Model       XD-620
2       Axis Count       6 axis
3       Wire Diameter       Φ0.5-2.0mm
4       Max.Outside Diameter       Φ50mm
5       Production Rate       0~400pcs/min
6       Feed Wire Length       Unlimited
7       Feeding Roller Pairs       2 pairs
8       Wire Feed Servo Motor       2.7kw
9       Cutter Servo Motor       0.75kw*2
10       OD Axis Servo Motor       0.75kw
11       Pitch Servo Motor       0.75kw
12

      Arbor Back-And-Forth Servo Motor

      0.75kw
13       Computer Display       Chinese & English
14       Feeding Setting Value       Y: 0.01-99999.99mm
15       Storage Capacity       1000 programs
16       Dimension (L*W*H)       1100*900*1600mm
17       Machine Weight       1000kg
18       Power AC       3P-380v  50/60hz



Samle Of Springs

Spring Sample's Dispaly

Machine Package

Machine's Package For Delivery



Our Advantages
  Our company has been focusing on the field of manufacturing spring making machine more than 20 years and has rich technical experience. At the same time, we focus on technological innovation and personnel training, and have our own professional R & D, sales and service teams. Company's the Founder Mr Bai has witnessed the Spring Industry development in China, and committed to improving user experience and continuously improving machine quality.
  The company's philosophy is "Quality Priority, Customers First, Keeping Improving", not only just a slogan, but also put into practice.
Our company's products are great recogized and favored by thousands of spring makers all over the world. Our main market as following:
△ Europe (UK, France, Germany, Italy, Sweden, Romania, Poland, Estonia, Russia, Ukraine, Bulgaria)
△ Africa (South Africa, Egypt, Ethiopia, Nigeria, Tunisia)
△ Asia (Korea, India, Vietnam, Philippines, Singapore, Indonesia, Malaysia, Iran, Thailand, Turkey)
△ South America (Argentina, Brazil, Chile, Peru, Ecuador, Colombia)
△ North America (America, Canada, Cuba, Mexico,Costa Rica)
  We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.


Company Philosophy
  Dongguan Xinding Mechanical Equipment Co., Ltd specialized in manufacturing and supplying CNC spring making machines for over 20 years, we founded on the belife of "Professional, Innovation, Quality and Service". With the know-how and wisdom, we introduce series of efficient CNC spring making machine and we have been serving thousands of spring manufacturing enterprises. Undoubtedly, we have earned the appreciation from leading domestic and international spring makers.
  Customer requires, XinDing aims. We will always be at your service.
  It's easy to find suppliers in China, but it is not easy to find a professional supplier such as Xinding. If the above products are just what you have been looking for, or you are interested in our other products, please do not hesitate to contact us. We will be happy to provide you with quality service, and your satisfaction is our constant pursuit.
