Synchronization Bending CNC Wire Forming Machine 8 Axis 3 - Phase 220v 50hz

Synchronization Bending CNC Wire Forming Machine 8 Axis 3 - Phase 220v 50hz

  • Synchronization Bending CNC Wire Forming Machine 8 Axis 3 - Phase 220v 50hz
Synchronization Bending CNC Wire Forming Machine 8 Axis 3 - Phase 220v 50hz
Product Details:
Place of Origin: China
Brand Name: XD
Certification: CE / ISO9001
Model Number: WF607
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard heat treated wooden case
Delivery Time: 25 days
Payment Terms: TT LC
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Axis Number:: 8 Servo Brand:: Sanyo Denki
Power Ac: 3-phase 220v 50hz Painting:: Blue
Package:: Wooden Case Gross Weight:: 3500kgs
High Light:

spring coiling machinery

,

cnc wire former

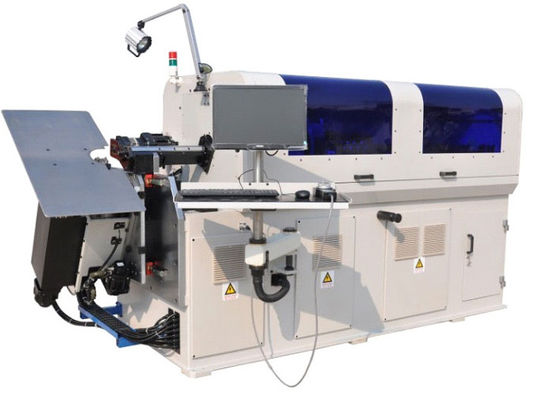

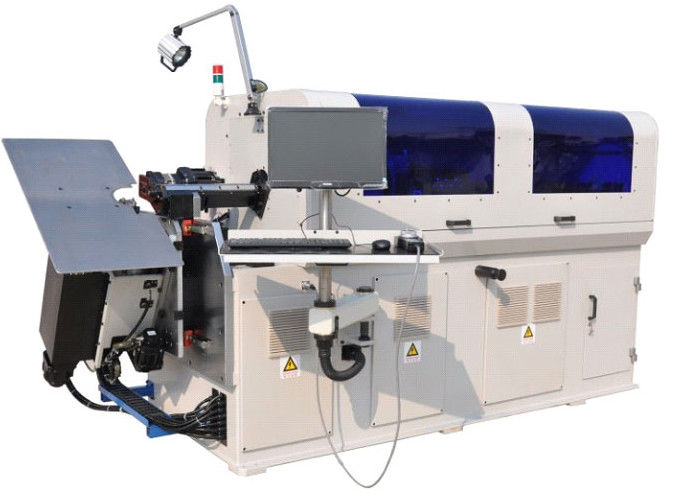

XD-WF608 CNC eight axis universal purpose wire forming machine



Technical Parameter



Model:

XD-WF608

Wire diameter:

Ø2.0-6.0mm(soft wire)
Ø2.0-4.0mm(hard wire)

Max. wire feeding speed:

54m/min

Dimensions (L*D*H):

3333×2035×1620mm

Machine Weight:

3000KG

Distance between the bending head and machine body:

594mm



Axes Feature:



Bending (inside):

1.3KW

Bending (outside):

1.3KW

Bending(U/D):

1.3KW

Bending(L/R):

1.3KW

Cutting axis:

1.3KW

Support table U/D axis:

0.85KW

Wire Feed axis:

3.0KW

Rotating Wire axis:

3.0KW





Our advantages:

1. The factory has about 15 years experience in this field, and the Founder Mr Liu has about 32 years experience for manufacturing the Spring Machine who witnessed the Spring Industry development in China.

2. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case

3. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine

4. Quality first, QA/QC is one of the most important departments in our company.

5. Main market:   Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia,Turkey)

                           Africa (South Africa, Egypt,Tunisia),

                           Asia  (Korea, India, Malaysia, Vietnam, Iran, Thailand

                           South America (Brazil, Argentina, Colombia, Cuba, Mexico)

6. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.

Our principle is "Quality first, Customer paramount, Keep improving"
