High Precision 5 Axis CNC Spring Forming Machine With Wire Rotation And Spinner

1.Axis count:	5 axis
2.Wire size:	¢0.30-2.50mm
3.Max outside diameter:	¢70mm
4.Wire feed motor:	2.7kw
5.Cam motor:	2.7kw
6.Wire rotation motor:	2.7kw
7.Quill motor:	1kw
8.Spinner motor:	0.4kw
9.Computer display:	Chinese/English
10.Max wire feed:	99999.99mm
11.Min wire feed:	0.02mm
12.Computer memory:	1000 programs
10.Dimensions:	1400*1100*1800mm
11.Weight:	1250kg
12.Power ac:	3-phase 380v 50hz

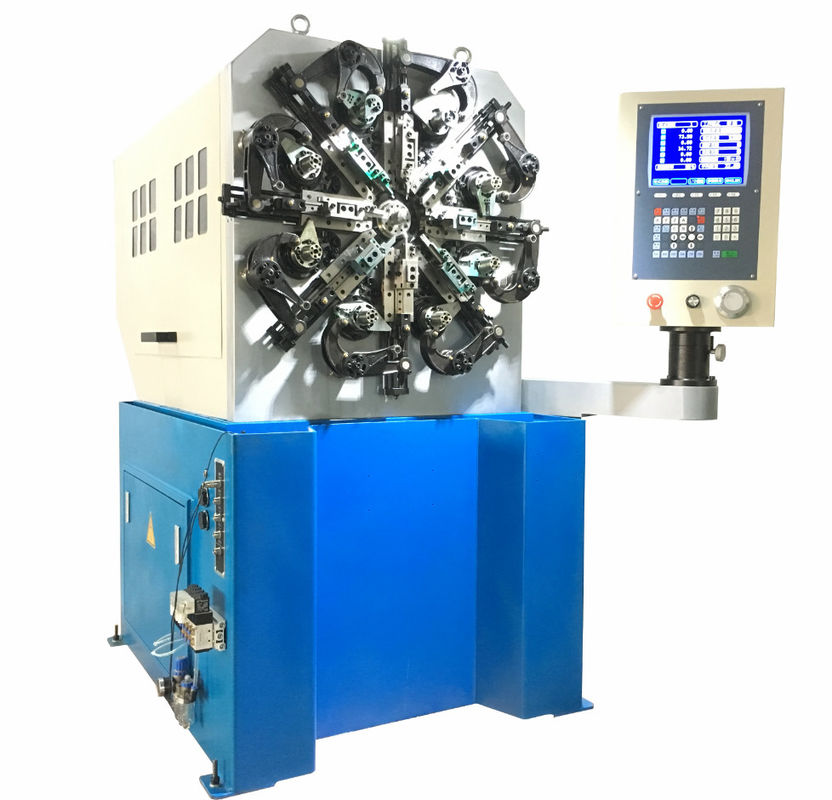

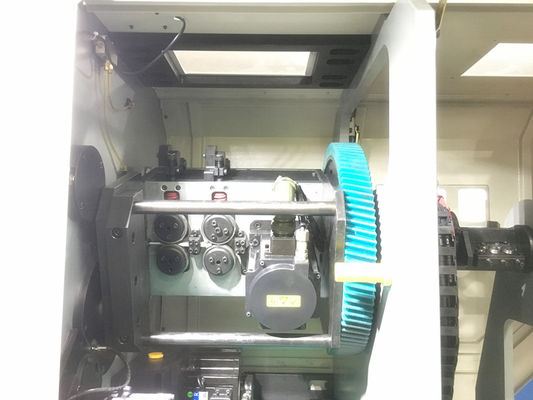

1. XD-CNC20W spring machine consists of cam axis, wire feeding axis, wire rotation, quill and spinner axis. mechanical part has eight sets of sliding blocks.

2. Computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
3. XD-CNC20W cnc spring machine is equipped with XinDing 5 axis spring machine controller. which can save 1000 files, axis location, feeding data.wire rotation position, production speed and production output are displayed on the screen.

Dongguan Xinding Mechanical Equipment Co.,Ltd is a production & sales combined company, with
more than 10 years of hard work, we accomplished to be a well-experienced and reliable CNC spring
machine supplier.
Our products are CNC Spring Coiler and CNC Spring Former.
The machine covers spring wire diameter from 0.07mm to 7.00mm, including spring types like,
compression springs, torsional springs, extension springs, wire forms, abnormal-shaped springs ect.

Our products have been sold in China and all over the world, such as Korea, Turkey, Iran, Vietnam
and have received a lot of praise. XingDing ownes independent research, development, design ability
and accept making product according to customers' requirements. Our company has always aimed to
manufacture "high speed, accurate, cost effective" equipment. Xingding people are in line with "quality
first, customer oriented, excellent service" idea .

To maintain the cleanliness of feeding servo motor to prevent oil and gas, and dust fall into the servo motor
or encoder, resulting in mechanical damage.
At least every six months for maintenance or in accordance with the number of machine production, and
replace the line feed operation at the same time.
Implementation of machine maintenance jobs, follow these steps:
Make sure the power is turned off.
Wipe the parts with cotton cloth, wire feed wheel, sending Line Block, delivers the spindle and other metal
surfaces, removal of the mechanical surface debris, oil, grease, dust, and coated with a of antirust thin oil
to prevent mechanical corrosion.
With the cotton swab to remove the old grease and oil stains on the wire feed drive gear.
The transmission tooth gear train gear contact face spreads the gear special-purpose oil lubrication.(Uses
OMEGA73 or same level lubricating oil).
Attention: Please do not use the air spray gun to be clean, in order to avoid the detritus, the dust fall the
slide rails sliding way or in the rotation structure gap.
