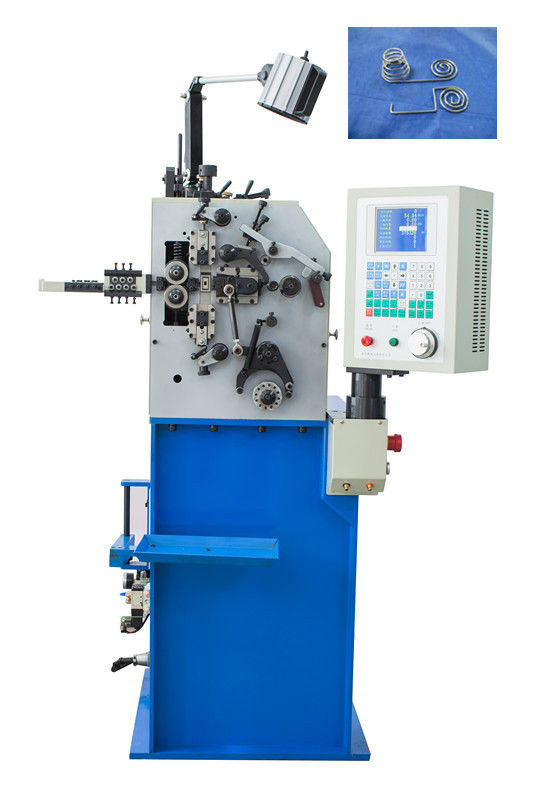

Computerized CNC Torsion Spring Machine For 0.10 - 0.80mm Wire Diameter

Computerized CNC Torsion Spring Machine For 0.10 - 0.80mm Wire Diameter

  • Computerized CNC Torsion Spring Machine For 0.10 - 0.80mm Wire Diameter
Computerized CNC Torsion Spring Machine For 0.10 - 0.80mm Wire Diameter
Product Details:
Place of Origin: China
Brand Name: XD
Certification: CE / ISO9001
Model Number: 208
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard heat treated wooden case
Delivery Time: 10 days
Payment Terms: TT LC
Supply Ability: 40 sets per month
Contact Now
Detailed Product Description
Axis Number:: 2 Optional Tools:: Torsional Device And Spring Length Gauge
Servo Brand:: Sanyo Denki Machine Painting:: Blue
Package:: Wooden Case Gross Weight:: 450kgs
High Light:

spring makers

,

cnc spring former

2-axis computerised XD-208 CNC torsion spring machine 0.10-0.80mm wire diameter





XD-208 CNC spring coiling machine



Technical Parameter:



Model:

XD-208

Wire diameter:

φ0.10~0.80mm

Axes:

2 axes

Maximum Outside Diameter:

20mm

Maximum Feeding Length:

unlimited

Maximum Manufacture Speed:

550pcs/min

Feed Speed

1200m/min

Memory Number:

1000PCS

Wire Feed Servo Motor:

1.0KW

Cam Servo Motor:

1.0KW

Power AC:

3-Phase 220V

Dimensions (L*D*H):

900X850X1600MM

Wooden Case Dimensions

1000x1050x1750mm

Machine Weight:

400Kg

Gross Weights

450Kg



Details:



Convenient mechanization,high speed and accuracy resulted from servo motion system.



1. XD208 compression spring machine is a 2 axis spring machine consisting of wire feeding axis

 and cam   axis. The spring machine’s two axis can work independently of synchronously according

 to the program. What’s more, extra torsional spring device is added to enhance its ability to

torsional spring production.
2. The spring pitch, outside diameter and cutter are driven by the cam motors. The wire feeding is

 controlled by an independent motor.
3. The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.
4. Servo motion system and servo drive controlled,  5.7" control panel, easy to operate
5. Cam can be moved clockwise or anti-clockwise; Wire feed length can be change

 while running the machine.

6. Computer can automatically detect the  temperature of  the motor and slow down the running

speed to protect the motor from overheating.
7. Computer can automatically decelerate according to the timing when the probe should be used.
8. Production speed can be increased or decreased at any time running the machine.
9. Optional accessories: Torsion device, oil seal device, prize-up device, length gauge.



Product Range:


This compression spring machine can make various compression springs, wire coil, oil seal springs,

battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding.



Sample spring:

Computerized CNC Torsion Spring Machine For 0.10 - 0.80mm Wire Diameter 0
