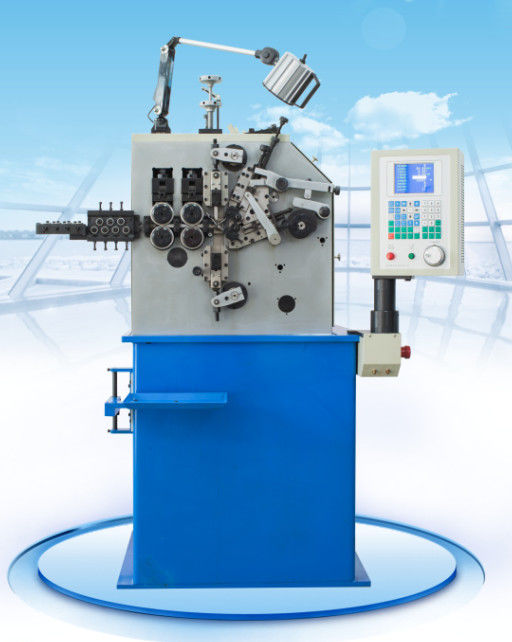

0.20 ~ 2.00mm 2 Axis Compression Spring Machine With High Speed 300pcs / Min

0.20 ~ 2.00mm 2 Axis Compression Spring Machine With High Speed 300pcs / Min

  • 0.20 ~ 2.00mm 2 Axis Compression Spring Machine With High Speed 300pcs / Min
0.20 ~ 2.00mm 2 Axis Compression Spring Machine With High Speed 300pcs / Min
Product Details:
Place of Origin: China
Brand Name: XinDing
Certification: CE / ISO9001
Model Number: XD-216
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10 working days after receiving your payment
Payment Terms: TT LC
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: 2 Axis CNC Spring Coiling Machine Feed Axis: 2.7kw
Wire Diameter: 0.2--2.0mm Cam Axis: 2.7kw
MAX.O.D: 20mm Pitch Axis: 750w
Max Speed: 500pcs/min
High Light:

spring machinery

,

spring former

 0.20 ~ 2.00mm 2 axis Compression Spring Machine With High Speed 300pcs/min





XD-216 cnc spring coiling machine for the production of compression springs



Technical Parameter:

Model:

XD-216

Wire diameter:

φ0.20~2.00 mm

Axes:

3 axes

Maximum Outside Diameter:

45 mm

Maximum Feeding Length:

unlimited

Maximum Manufacture Speed:

300pcs/min

Feed Speed

1550m/min

Memory Number:

1000PCS

Wire Feed Servo Motor:

2.7 KW

Cam Servo Motor:

2.7 KW

Pitch Servo Motor:

750w

Power AC:

3-Phase 220V

Dimensions (L*D*H):

900X850X1600mm

Wooden Case Dimensions

1100x1100x1600mm

Machine Weight:

800Kg

Gross Weights

850Kg





Details

Convenient mechanization,high speed and accuracy resulted from servo motion system.

1. XD-216 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis, pitch axis, the spring machine’s

three axis can work independently of synchronously according to the program.
2. The compression spring outside diameter and cutter are driven by the cam motors. The wire

 feeding is controlled by an independent motor. Pitch is also driven by seperate motor.



Product Range:
This spring coiling machine makes various kinds of compression springs, wire coil, taper s

prings, double-taper springs, safe springs, clip spring as well as various simple wire molding,

its products can be applied to military, construction, motorcycles ect.



Sample springs:

0.20 ~ 2.00mm 2 Axis Compression Spring Machine With High Speed 300pcs / Min 0
